Core Products and Services

Anti-Drone

Learn More >

Anti- Interference

Learn More >

Drone Anti-Jamming Solutions

Learn More >

图片名称

Swarm Technology Co., Ltd

Ensure your low altitude security!

图片名称

Dongguan Swarm Technology Co., Ltd. is a leading innovator in the field of unmanned aerial vehicle (UAV) countermeasure solutions. Specializing in the development and provision of advanced anti-drone systems and drone anti-jamming solutions, our company is dedicated to addressing the growing challenges posed by unauthorized or malicious drone activities.



We are committed to continuous innovation and excellence. Our team of experts is dedicated to developing solutions that not only meet but exceed the evolving demands of our clients. By staying at the forefront of technological advancements, we aim to provide reliable, efficient, and scalable solutions that address the complex challenges of today's drone landscape.



With a growing international presence, Swarm Technology serves clients worldwide, delivering tailored solutions to meet diverse operational needs. The company's dedication to quality, security, and customer satisfaction has earned it a reputation as a trusted partner in the UAV countermeasures industry.

Empowering Industries, Elevating Security

Learn More arrow

Applications Across Multiple Sectors

Our products are widely applied across diverse sectors, including but not limited to

Defense and Security

Defense and Security

Protecting critical infrastructure, military installations, and public events from potential drone threats.

Defense and Security

Aviation

Aviation

Safeguarding airports and airspace from unauthorized drone incursions that could jeopardize flight safety.

Aviation

Energy

Energy

Securing power plants, oil refineries, and renewable energy facilities from espionage or sabotage by rogue drones.

Energy

Public Safety

Public Safety

Enhancing the safety of large public gatherings, such as sports events and concerts, by preventing disruptive or dangerous drone activities.

Public Safety

Commercial and Industrial

Commercial and Industrial

Ensuring the security of corporate campuses, industrial sites, and private properties from drone-related risks.

Commercial and Industrial

UAS system

UAS system

At present, the global unmanned aerial vehicles (UAVs) are growing rapidly in the security,industrial, commercial and consumer fields, and the demand for positioning and navigation of UAVs is just needed, and the application of anti-jamming in some sensitive industries is upgraded.

UAS system

Hot Products

Delivering tailored solutions to meet diverse operational needs

70M-10G Unmanned aerial vehicle spectrum detection with offline analysis function

JDF10 Stationary Drone Spectrum Detection System1.General DescriptionThe SD1 drone spectrum detection device can identify common civilian drone models on the market (including video transmission signals and control signals), simultaneously detect over 40 targets, and possesses basic capability for identifying drone operators. The device passively intercepts drone signals, operates 24/7 regardless of weather conditions, emits no high-power electromagnetic radiation, has a detection range exceeding 5 km with a maximum range beyond 10 km. Through a browser, users can view real-time information such as the drone's electronic fingerprint (or SN), target orientation, position, time, frequency, likelihood, model type, and manufacturer. It provides a RESTful API for seamless integration with other systems.CharacteristicsPassive detection: The system employs passive positioning technology, utilizing electromagnetic wave signals transmitted by drones and remote controllers for radiation source localization. This approach does not interfere with existing equipment, ensuring safety and reliability. It possesses early warning capabilities.Full-frequency band broadband monitoring and signal analysis: from 70MHz to 10000MHz full band scanning. It covers various transmission links, reliably ensures the detection of frequency-hopping signals, and features signal recording and analysis capabilities.Local signal analysis and decoding capability: The device requires no internet or peripheral connections and features the following decoding capabilities: offline decryption of DJI drone IDs; ADS-B signal parsing; MAC address decoding via Wi-Fi (including e-Wi-Fi); and video decoding for FM analog transmission.Integration capability: The device supports integration with various types of countermeasures, including omnidirectional interference, directional interference, and deception techniques. Multiple devices can be configured for networking and centralized control management.SpecificationDetection Function & PerformanceContentDetailNotesDetection Frequency Range70MHz to 10GHzDetection Distance7KmMaximum 10 km, with variations depending on the electromagnetic environment and the detection distance of the drone.Direction Finding Accuracy≤10°Detection Coverage360° airspaceSimultaneous Detection Amount ≥40 setsMulti-objective DetectionSpectrum Detection70MHz to 10GHz full bands scanRID DetectionOffline Analysis SupportChina GB42590 -2023, US ASTM F3411-22a, Europe ASD -STAN PrEN4709-002Drone ID DetectionOffline Analysis SupportMavic2、Mavic3、air3s、Matrice4 and so onADSB DetectionSupports ADS-B information analysis for broadcasts from civil aircraft and similar sourcesAnalog video analysis capabilitySupports analog video decoding across the full frequency band from 70 MHz to 10 GHzInstant video imagesOther FunctionsContentDetailNotesLocating FunctionFeatures GPS automatic positioning and north alignment functionUnattended functionAuto mode on, and device will record events and follow setting to operate defence.Networking FunctionMultiple devices can be networked (AOA)Integration CapabilitySupports to integrate with countermeasure means and other detection means (Radar/Camera)Other PerformanceContentDetailNotesPower80 ~ 264V AC 113 ~ 370V DCAverage Power Consumption≤100WWorking Temperature-20°to 60°SizeD350mmⅹH480mm Net Weight15KgSoftware Image

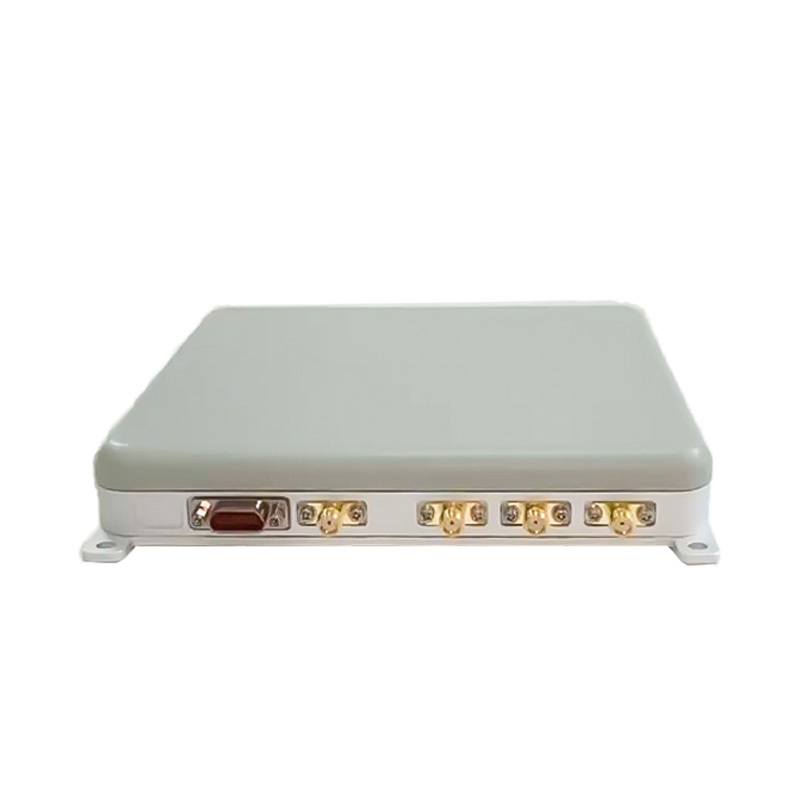

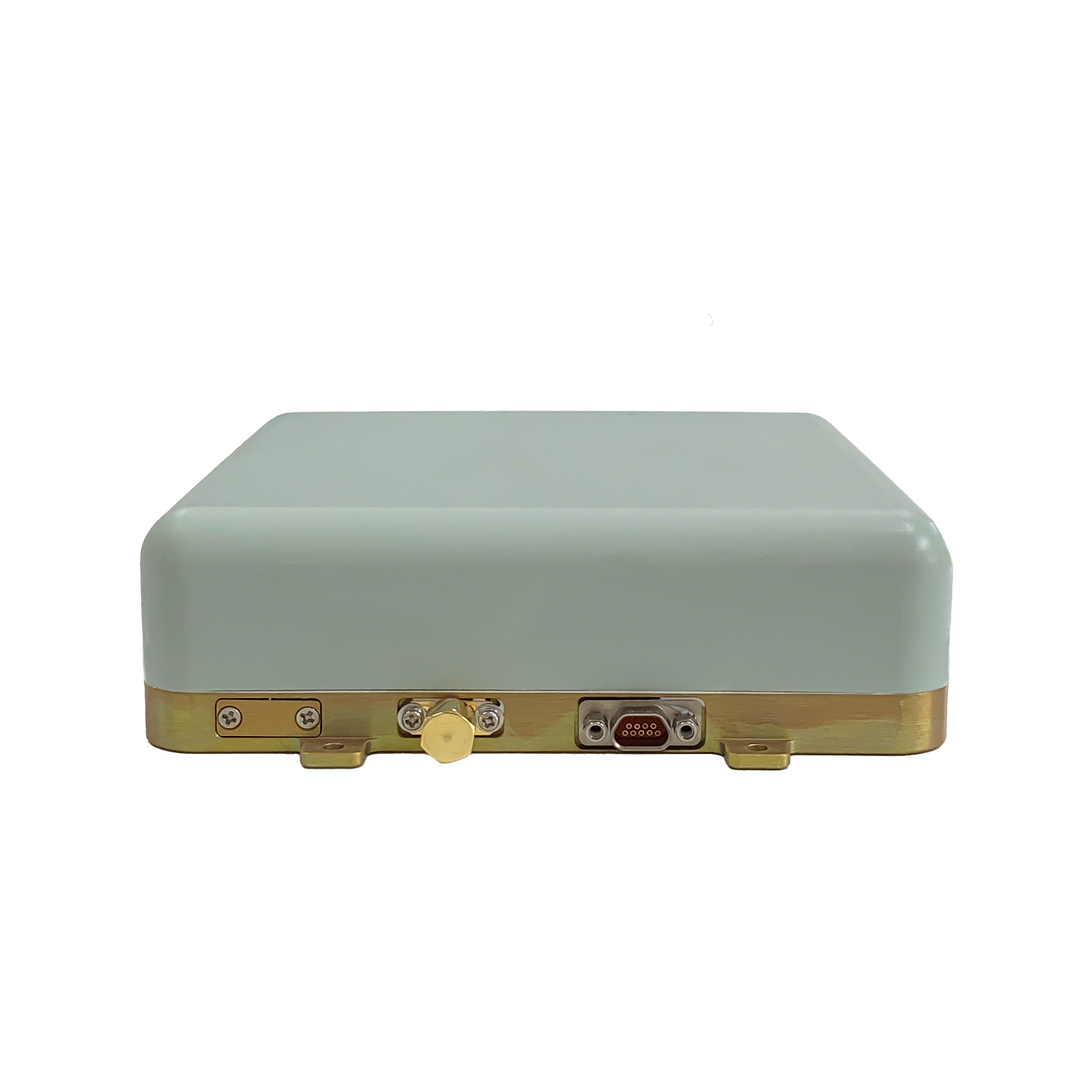

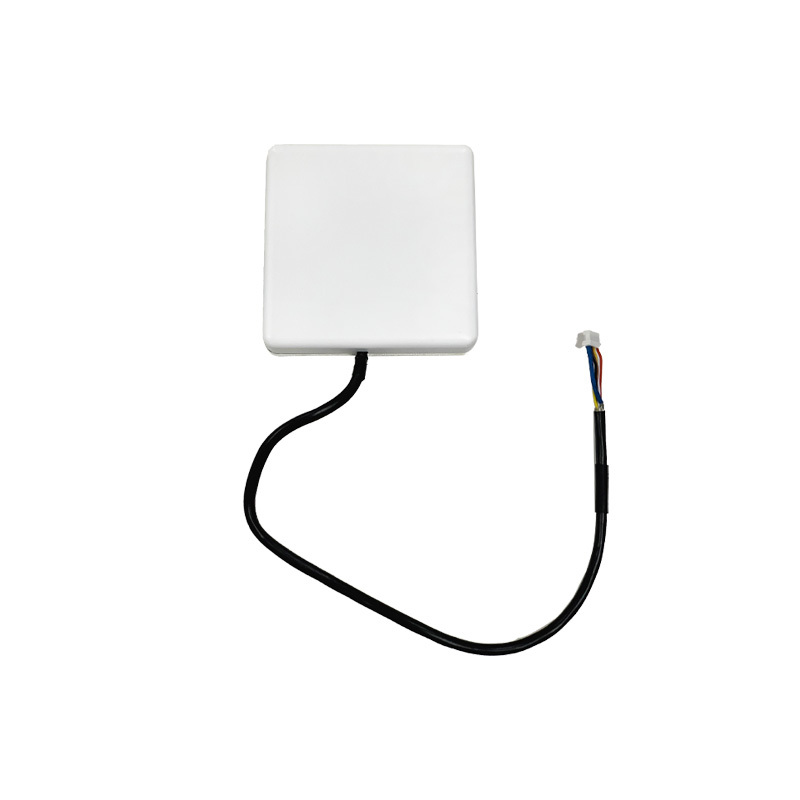

Single frequency four channel mini anti-interference module

JAJ1-4 miniSmall-sized Four-Element ArrayIntegrated Navigation Anti-Jamming UnitProduct Specification2026.04Table of Contents1 Overview2 Product Composition3 Product Specification3.1 Main Functions3.2 Main Technical Indicators3.3 External Interfaces3.4 Structural Design3.5 Reliability3.6 Environmental Adaptability3.7 Shock and Vibration4 Packaging5 Installation Precautions1. OverviewThis document specifies the product specification requirements for the JAJ1-4MINI Small-sized Four-Element Array Integrated Navigation Anti-Jamming Unit (hereinafter referred to as the "Anti-Jamming Unit").The Anti-Jamming Unit is mainly composed of an array antenna, an anti-jamming processing module, a built-in receiver, and supporting cables. It supports the reception, amplification, down-conversion, filtering, anti-jamming processing, and up-conversion output of 4-channel signals at BDS_B1, GPS L1, and Galileo E1 frequency points.The built-in receiver supports PVT (Position, Velocity, Time) solution output. It has a power supply range of DC9V~36V and is capable of resisting 1 to 3 incoming interferences of various types such as broadband, narrowband, pulse, and frequency sweep suppression.2. Product CompositionThe product consists of an anti-jamming unit has test cables, and random documents.The composition details are as follows:Table 2-1 Product Configuration (Single Set of Product)Serial NumberProduct Configuration itemnumberNote1Anti-Jamming Unit1 pcs65mm×65mm2Connect Cable/Optional, not configured by default, customizable3Built-in navigation receiver1 pcsuBlox NEO-M9N4G1 frequencies/Optional, not supported by default, if chosensupported G1,the power consumption will Increase.5Screws1 set1 set contains 4 pcs M2.5×2.4 screws Product Drawings of Anti-Jamming UnitFigure 2-1 Product Drawings of Anti-Jamming UnitFigure 2-2 Dimensions Drawing of Anti-Jamming Unit3. Product Specification3.1 Main Functions1). Supports reception of BDS_B1, GPS L1, and Galileo E1 frequency signals.2). Possesses the capability to resist various suppression interferences such as wideband, narrowband, sweep, and pulse, as well as combinations ofthe above interferences within the B1, L1, and E1 frequency bands.3). Supports soft bypass and anti-interference mode output, which users can flexibly select and switch via the serial port.4). Built-in receiver, capable of outputting positioning solution results after anti-interference processing.3.2 Main Technical Indicators1) Frequency Point Anti-jamming Capability(1)Number of Channels: 4 channels, supporting BDS_B1, GPS L1, and Galileo E1 frequency bands;(2)Anti-jamming Types: Capable of resisting various suppression interferences such as broadband, frequency-sweeping, and pulse in B1/L1/E1 frequency bands, as well as the combination of the above interferences;(3)Number of Anti-multiple Interferences: 1 to 3 interference sources in different directions;(4)Anti-single Broadband Interference Capability: Interference-to-signal ratio≥100dB@-130dBm;(5)Anti-three Broadband Interferences Capability: Interference-to-signal ratio≥85dB@-130dBm;(6)Anti-jamming Spatial Range: Azimuth 0°~360°, Elevation -10°~90° .Note: The elevation angle is defined as the angle between the spatial vector of the anti-jamming unit and the horizontal plane, with the body coordinate system y-axis as the pitch axis, the counterclockwise direction is "+", and theclockwise direction is "-".2) RF Output(1)RF Output Power: -55dBm~-70dBm;(2)RF Impedance: 50 ohms;(3)Output VSWR: ≤2.0.3) Built-in Receiver SpecificationsThe built-in receiver supports receiving and resolving signals at B1, L1, and E1 frequency points, and outputs positioning results through a data interface:(1)Positioning Accuracy: Horizontal error ≤7m, vertical error ≤9m (95%, PDOP≤4);(2)Velocity Measurement Accuracy: ≤0.2m/s (95%).4) Antenna Port Burnout Resistance: ≥10W.5) Operating Voltage Range: DC9V~36V.6) Average Power Consumption: ≤6W.3.3 External InterfacesThe antenna is equipped with two external interfaces:1) 1 pcs J30J power data interface, which is used for power supply and data commissioning. The power data interface is a J30J-9ZK connector, with a total of 9PIN signal definitions as follows.Table 3-1 Power Data Interface Definition TableConnector PinNumberSignal DefinitionSignal DescriptionInstructions1+9V~+36VPower InputUnit Power Supply2+9V~+36VPower Input3GNDPower Ground4GNDPower Ground5RS422 RX-RS422 ReceiveData Transmission6RS422 RX+RS422 Receive7RS422 TX-RS422 Transmit8RS422 TX+RS422 Transmit9GNDPower Ground2) 1 pcs SMA-K RF output interface, which is used for outputting B1/L1/E1 frequency signals after antenna amplification and anti-interference processing. The definition of the RF signal output interface is shown in the following table:Table 3-2 Definition Table of RF Signal Output InterfaceConnectorModelSignal Output AmplitudeSignal DescriptionInstructionsSMA-K-55dBm~-70dBmRadio FrequencyUpconversion OutputOutput B1/L1/E1 frequency signal3.4 Structural Desi

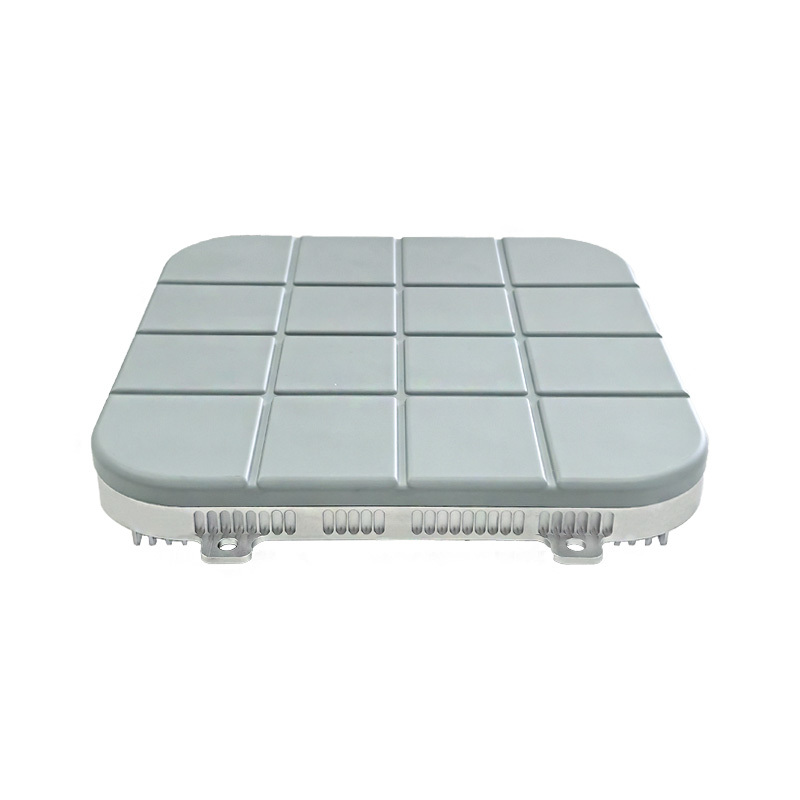

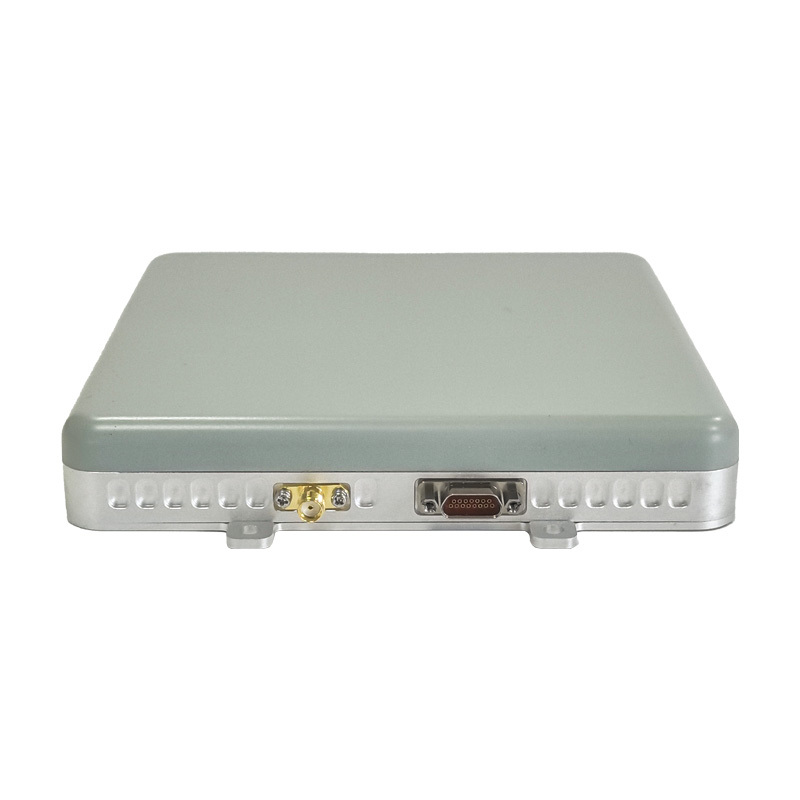

dual Sixteen-Element Array Integrated Navigation Anti-Jamming Unit

JAJ2-16Pdual Sixteen-Element ArrayIntegrated Navigation Anti-Jamming UnitProduct Specification2026.04Table of Contents1 Overview2 Product Composition3 Product Specification3.1 Main Functions3.2 Main Technical Indicators3.3 External Interfaces3.4 Structural Design3.5 Reliability3.6 Environmental Adaptability3.7 Shock and Vibration4 Packaging5 Installation Precautions1. OverviewThis document specifies the product specification requirements for the JAJ2-16P Integrated Navigation Anti-Jamming Unit (hereinafter referred to as the "Anti-Jamming Unit").The anti-jamming unit is mainly composed of an array antenna, an anti-jamming processing module, a built-in receiver, andsupporting cables. It supports the reception, amplification, down-conversion, filtering, anti-jamming processing, and up-conversion output of signals at 16-channel BDS_B1, GPS L1 + L2, Galileo E1 frequency points or 16-channel BDS_B1, GPS L1 + L5, Galileo E1 frequency points.The built-in receiver supports PVT solution output, with a power supply range of DC9V ~36V, and has the function of resisting 1~ 15 incoming broadband, narrowband, pulse, frequency sweep and other suppression interferences.2. Product CompositionThe product consists of an anti-jamming unit has test cables, and random documents.The composition details are as follows:Table 2-1 Product Configuration (Single Set of Product)Serial NumberProduct Configuration itemnumberNote1Anti-Jamming Unit1 pcs300mm×300mm2Heat sink1 pcs3Connect Cable/Optional, not configured by default, customizable4Built-in navigation receiver/UM9605G1 frequencies/Optional, not supported by default, if chosen supported G1,the power consumption will Increase.6Screws1 set1 set contains 8pcs M2.5×2.4 screws Product Drawings of Anti-Jamming UnitFigure 2-1 Product Drawings of Anti-Jamming UnitFigure 2-2 Dimensions Drawing of Anti-Jamming Unit3. Product Specification3.1 Main Functions1). Supports the reception of signals at the BDS_B1, GPS L1 + L2, Galileo E1 frequency bands or the BDS_B1, GPS L1 + L5, Galileo E1 frequency bands.2). Supports to resist various jamming types such as broadband, narrowband, sweep, and pulse, as well as combinations ofthe above jamming, within the B1/L1/E1+L2 frequency bands or the B1/L1/E1+L5 frequency bands.3). Supports soft bypass and Anti-jamming mode output, which users can flexibly select and switch via the serial port.4).Built-in receiver, capable of outputting positioning solution results after Anti-jamming processing.3.2 Main Technical Indicators1) Frequency Point Anti-jamming Capability(1)Number of Channels: 16 channels, supporting BDS_B1, GPS L1+L2, Galileo E1 frequency bands or BDS_B1, GPS L1+L5, Galileo E1 frequency bands;(2)Anti-jamming types: Having the ability to resist various suppression interferences such as broadband, frequency sweeping and pulse in B1/L1/E1+L2 frequency band or B1/L1/E1+L5 frequency band, as well as the ability to resist the combination of the above interferences;(3)Number of Anti-multiple Interferences: 1 to 15 interference sources in different directions;(4)Anti-single Broadband Interference Capability: Interference-to-signal ratio ≥ 110dB@-130dBm;(5) Anti-seven Broadband Interferences Capability: Interference-to-signal ratio ≥ 100dB@-130dBm;(6)Anti-fifteen Broadband Interferences Capability: Interference-to-signal ratio ≥ 80dB@-130dBm;(7) Anti-jamming Spatial Range: Azimuth 0°~360°, Elevation -10°~90° .Note: The elevation angle is defined as the angle between the spatial vector of the anti-jamming unit and the horizontal plane, with the body coordinate system y-axis as the pitch axis, the counterclockwise direction is "+", and the clockwisedirection is "-".2) RF Output(1)RF Output Power: -55dBm~-70dBm;(2)RF Impedance: 50 ohms;(3)Output VSWR: ≤2.0.3) Built-in Receiver SpecificationsThe built-in receiver supports receiving and resolving signals at B1, L1, and E1+L2 or B1, L1, and E1+L5 frequency points, and outputs positioning results through a data interface:(1) Positioning Accuracy: Horizontal error ≤7m, vertical error ≤9m (95%, PDOP≤4);(2)Velocity Measurement Accuracy: ≤0.2m/s (95%).4) Antenna Port Burnout Resistance: ≥10W.5) Operating Voltage Range: DC9V~36V.6) Average Power Consumption: ≤70W.3.3 External InterfacesThe antenna is equipped with two external interfaces:1)1 pcs J30J power data interface, which is used for power supply and data commissioning. The power data interface is a J30J-25ZKP connector, with a total of 9PIN signal definitions as follows.Table 3-1 Power Data Interface Definition TableConnector PinNumberSignal DefinitionSignal DescriptionInstructions1+9V~+36VPower InputUnit Power Supply2+9V~+36VPower Input3GNDPower Ground4GNDPower Ground5RS422 RX-RS422 ReceiveData Transmission6RS422 RX+RS422 Receive7RS422 TX-RS422 Transmit8RS422 TX+RS422 Transmit9GNDPower GroundRS232 Data Transmission10RS232_RX1RS232 Receive11RS232_TX1RS232 Transmit12GNDPower GroundRS232 Data Transmission13RS232_RX2RS232 Receive14RS232_TX2RS232 Transmit15NCNC

Support 100M-8G frequency band handheld portable detection device JDH-8

Ultrawideband Portable UAV Detection DeviceRange: 100MHz-8GHzModel: J DH81. DescriptionThe J D8H Ultra-Bandwidth Portable Drone Detector employs a superheterodyne architecture to detect high-definition digital video signals (OFDM-based) from industry-leading brands like DJI and Autel, operating across the 100MHz-8GHz spectrum, as well as FM analog video signals from DIY drones. Featuring dual-antenna hardware and multi-channel parallel scanning technology, this device delivers rapid response, high sensitivity, extended detection range, low false alarm rate, strong system scalability, and user-friendly operation.2. Main Features1) Full-Spectrum Precision Detection: The device covers the 100MHz-8GHz frequency band, enabling 1MHz incremental detection with no dead angles, achieving ultra-wideband full-spectrum coverage. For drones operating across different frequency bands, it captures their analog video signals in real-time, boasting industry-leading ultra-low false alarm rates while displaying key parameters like drone type, signal frequency, and strength.2) Full Compatibility with Major Drones: Supports detection of mainstream brands including DJI and Autel.3) Direction-Finding Function for Drones: Features optional directional antennas that allow users to adjust signal strength readings for rapid source localization, enhancing target locking efficiency.4) Real-Time Video Capture: Captures analog video signals from 100MHz-8GHz drones in real-time, displaying FPV camera feeds through dual modes: direct device screen viewing or external display via magnetic interface, accommodating diverse operational scenarios.5) Interference Device Coordination: Quick integration with backpack-style countermeasures via magnetic interface,establishing a remote "detect-counter" system to significantly boost operational efficiency and airspace control capabilities.6) Wide Temperature Range Stability: The device demonstrates exceptional adaptability to extreme temperatures, maintaining stable operation at-20°C and fault-free performance at 60° C, ensuring continuous operation in harsh climatic conditions.7) High-Level Waterproof/Dustproof Protection: Certified to IP54 international standards, it effectively resists water splashes and dust intrusion, guaranteeing reliable outdoor performance in complex environments and accommodating diverse field applications.8) High-Power Fast Charging: Compatible with 35W fast charging protocol, it achieves full charge in just 1 hour, significantly reducing charging wait times and enhancing operational efficiency.9) Extended Battery Life: Equipped with replaceable 2900mAh high-performance lithium-ion batteries, it delivers up to 7 hours of continuous operation, fully meeting the demands of prolonged outdoor work.10) Bluetooth Wireless Data Transfer: Supports Bluetooth wireless data transmission, enabling real-time data transfer tocompatible terminal devices for remote monitoring and management, improving operational convenience.3. SpecificationContentDetailBands Receiving100MHz-8000MHzVideo Capturing Range100MHz-8000MHz Analog video transmission modeRecognition TypeOFDM HD video transmission signal, FPV FM analog video transmissionDetection Distance≥1KMDetection Alarm MeansVibration, soundLog RecordBuilt-in storage recordsUpgrade and data export interfaceSpecial magnetic wireStart MethodLong press the power button for 3 secondsPower SupplyRemovable lithium battery (Type-C charging)Battery Endurance2900mAh battery provides approximately 7 hours of use (single battery)Control MethodButton operation, supports sound adjustment, screen backlight on/off, and drone detection information viewingEnvironmental AdaptationOperating temperature: -20°C to +60°C Storagetemperature: -40°C to +85°CProtection RatingIP54Device Size164mm × 44mm × 68mm (main unit without antenna)Device WeightApproximately 580g (including battery and antenna)

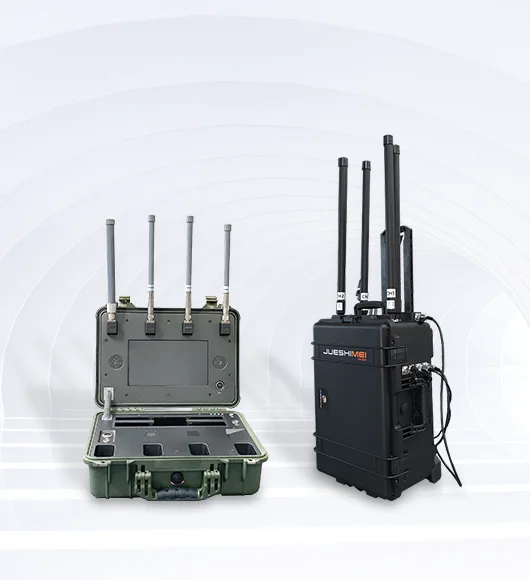

Portable unmanned aerial vehicle detection and navigation deception device JDS-PB

JDS-PB 》To protect your low-altitude Security Product SpecificationContents ofJDS-PBDetection5KM radius distance, Pre-alarmIdentification TrajectoryFully applianceBagpack/suitcase portable VehicularFixedSpoofingGNSS spoofing LandingCircling DetectionDetectionDetection bands:900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz Supporting from 30MHz to 6GHzPassive Detection:It only passively receives and does not transmit any electromagnetic signal, and can detect the UAV model and its electronic fingerprint.Accurate Identification:It can accurately identify different UAVs of the same brand and model. Unmanned:Turn on unattended mode, which can automatically detect alarms 24 hours a day. White and Black List:It can mark the black-and-white list with one key, and the white list UAV does not alarm.Full Drone Library:More than 350 types of model library, supporting DJI full series, mainstream brands and DIY UAVs, covering more than 98% of UAV models on the market.Integrability:Professional UAV detection software, which can be integrated jamming control systems. DetectionPassiveDetectionBands supported30MHz—6GHz full bands detectionKeydetection frequency bands:900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHzDetection DistanceRadius 5km, coverage scope 10kmDetection meansSpectrum +Drone IDSensitivityBetter than -115dBm( 25kHz)Directivity360 Omnidirectional。AdaptableCommunicationModulationMethodFM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSSSimultaneous Detection≥30 dronesDetection ModePanoramic scanning, channel scanningDynamic Range70dBPower SupplyAC220V±20V (110V customized)Internal battery up to 4 hours working timeOperating Time7*24H Aeroscope functionWe will add similar to DJI Aeroscope function in system.Supporting: new DJI models OC2, OC3, OC4 protocol DJI drone: Mavic 2, Mavic 2 enterprise, Phantom 4 Enterprise V2, Mavic 3, Mavic 3 Classic, Mavic 3 Enterprise, DJI Mini 2, DJI Mini3. DJI Mini4, Avatar, Avatar 2, Mini 4 Pro, M300, M350 RTK,some Parrot drones and so on.Functions: showing real ID of drones, longitude and latitude, height of drones, routetracking, pilot location, and so on. SpoofingSpoofing pointsGPS L1Effect:LandingBAIDOU B1Evicting/CirclingGALILIEO E1GLONASS L1 Usage TypesOperating1. bagpack----with attached Windows Tablet as CCS platform.2. Fixed usage----with attached Windows Tablet or computer as CCS platform.3. Vehicular usage----fix device on top of vehicular, and wired connected to Windows Tablet or computer to operate. Windows TabletWindows TabletWaterproofRJ45 connecting to deviceDirectly touch screen to operate

Stationary detection equipment JDF5

Detection bands:433MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHzSupporting range from  30MHz to 6GHz Passive Detection:It only passively receives and does not transmit any electromagnetic signal, and can detect the UAV model and its electronic fingerprint.Accurate Identification:It can accurately identify different UAVs of the same brand and model.Unmanned:Turn on unattended mode, which can automatically detect alarms 24 hours a day.White and Black List:It can mark the black-and-white list with one key, and the white list UAV does not alarm.Full Drone Library:More than 350 types of model library, supporting DJI full series, mainstream brands and DIY UAVs, covering more than 98% of UAV models on the market.Integrability:Professional UAV detection software, which can be integrated into radar, photoelectric and jamming control systems.  Bands supported30MHz—6GHz full bands detectionKey detection frequency bands:433MHz\900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHzDetection DistanceRadius 5km, coverage scope 10kmAccuracy ≤3°Hovering         ≤10°MovingSensitivityBetter than -115dBm(25kHz)Directivity360°OmnidirectionalAdaptable Communication Modulation MethodFM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSSSimultaneous Detection≥50 dronesDetection ModePanoramic scanning, channel scanningDynamic Range70dBPower SupplyAC220V±20V (110V customized)Operating Time7*24HSupporting:  new DJI models  OC2, OC3, OC4 protocol DJI drone:    Mavic 2, Mavic 2 enterprise,   Phantom 4 Enterprise V2, Mavic 3, Mavic 3 Classic, Mavic 3 Enterprise, DJI Mini 2, DJI Mini3. DJI Mini4, Avatar, Avatar 2, Mini 4 Pro, M300, M350 RTK,  some Parrot drones and so on.Functions:  showing real ID of drones, longitude and latitude, height of drones, route tracking, pilot location, and so on.
