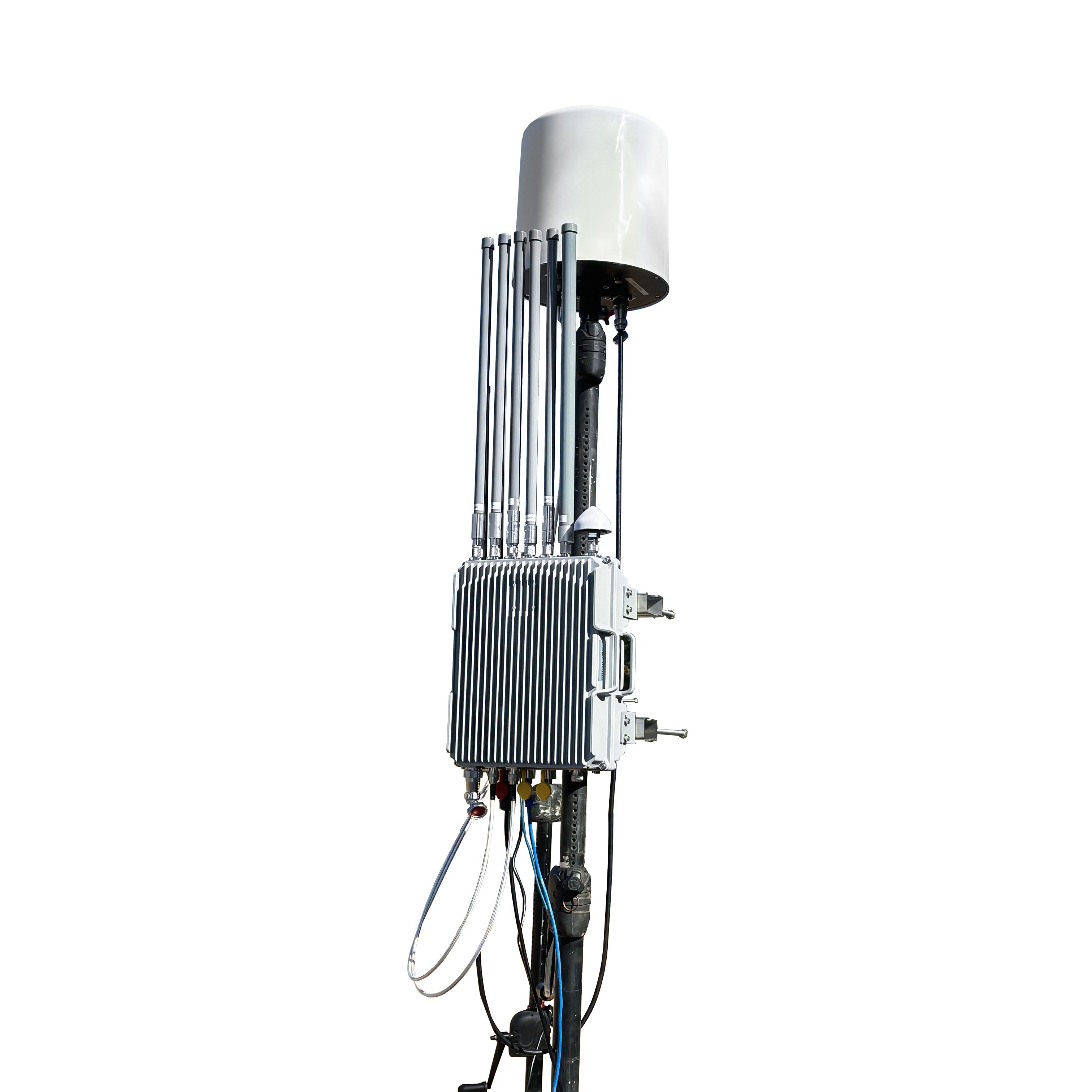

Stationary detection equipment JDF5

Stationary detection equipment JDF5

Detection bands:433MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHzSupporting range from  30MHz to 6GHz Passive Detection：It only passively receives and does not transmit any electromagnetic signal, and can detect the UAV model and its electronic fingerprint.Accurate Identification：It can accurately identify different UAVs of the same brand and model.Unmanned：Turn on unattended mode, which can automatically detect alarms 24 hours a day.White and Black List：It can mark the black-and-white list with one key, and the white list UAV does not alarm.Full Drone Library：More than 350 types of model library, supporting DJI full series, mainstream brands and DIY UAVs, covering more than 98% of UAV models on the market.Integrability：Professional UAV detection software, which can be integrated into radar, photoelectric and jamming control systems.  Bands supported30MHz—6GHz full bands detectionKey detection frequency bands：433MHz\900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHzDetection DistanceRadius 5km, coverage scope 10kmAccuracy ≤3°Hovering         ≤10°MovingSensitivityBetter than -115dBm（25kHz）Directivity360°OmnidirectionalAdaptable Communication Modulation MethodFM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSSSimultaneous Detection≥50 dronesDetection ModePanoramic scanning, channel scanningDynamic Range70dBPower SupplyAC220V±20V (110V customized)Operating Time7*24HSupporting:  new DJI models  OC2, OC3, OC4 protocol DJI drone:    Mavic 2, Mavic 2 enterprise,   Phantom 4 Enterprise V2, Mavic 3, Mavic 3 Classic, Mavic 3 Enterprise, DJI Mini 2, DJI Mini3. DJI Mini4, Avatar, Avatar 2, Mini 4 Pro, M300, M350 RTK,  some Parrot drones and so on.Functions:  showing real ID of drones, longitude and latitude, height of drones, route tracking, pilot location, and so on.

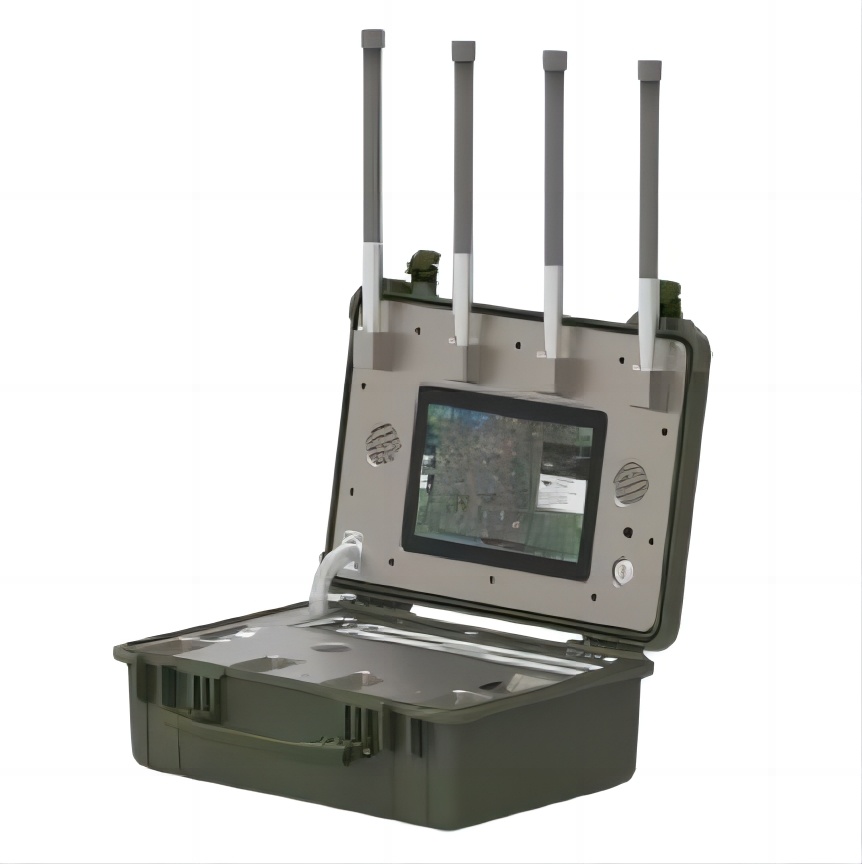

Portable drone detection equipment

Portable drone detection equipment

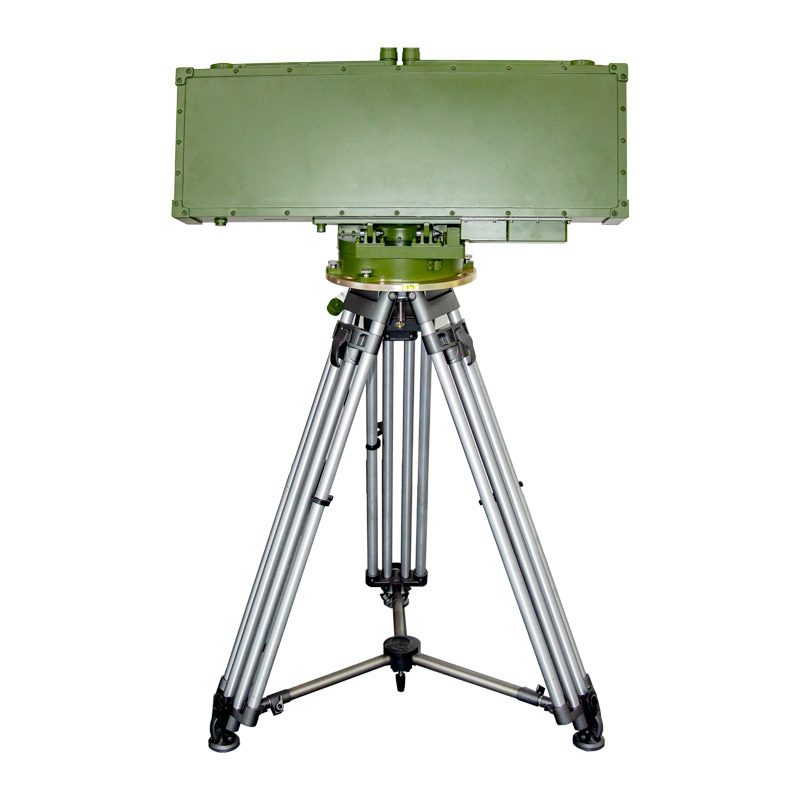

Active radar detector

Active radar detector

JR1 radar is a three-coordinate radar with pulse Doppler system with azimuth machine sweep and pitch dimension scanning, which is mainly used for detection and positioning of low-altitude aircraft, ground moving vehicles and personnel. The radar can accurately detect the spatial position of the target, and can be connected to the optoelectronic system,which can be cascaded with countermeasures such as jamming, laser weapons,and navigation decoy.

Fixed spoofing

Fixed spoofing

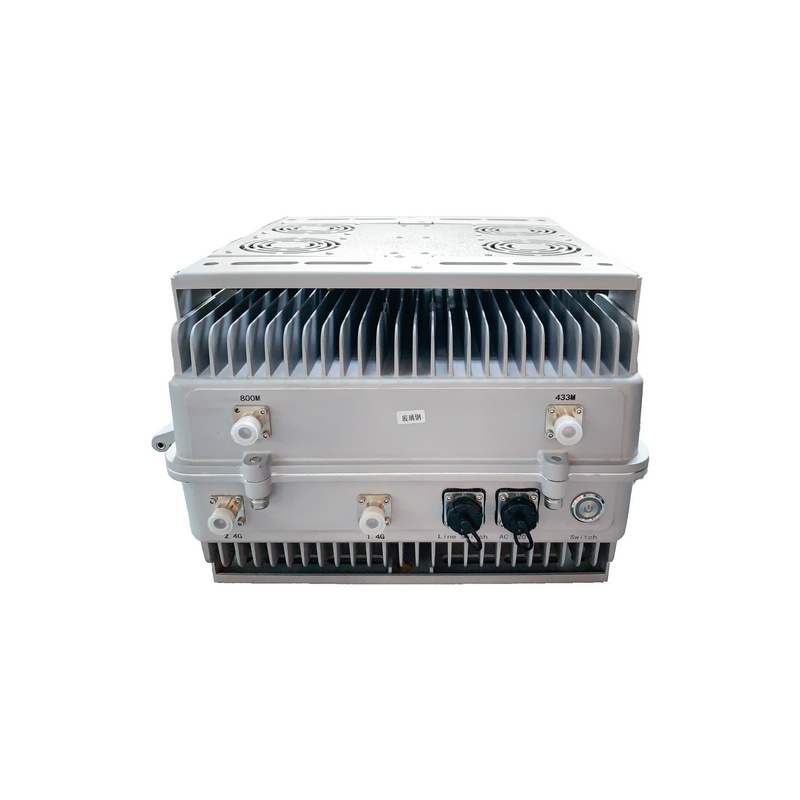

Stationary drone jamming device JJ3

Stationary drone jamming device JJ3

JJ3 is a high-power omnidirectional fixed uav countermeasures equipment, which is connected to external mains power and can realize single frequency control. The equipment adopts narrow band interference technology and radio frequency suppression technology to cut off the connection between the uav and the remote control, thus forcing the uav to return forcibly. In addition, after the UAV is controlled, it will cut off the image transmission channel, which will not transmit video, aerial photos and can not receive any instructions from the remote control on the ground, so as to achieve the protection of key areas and prevent privacy leakage.

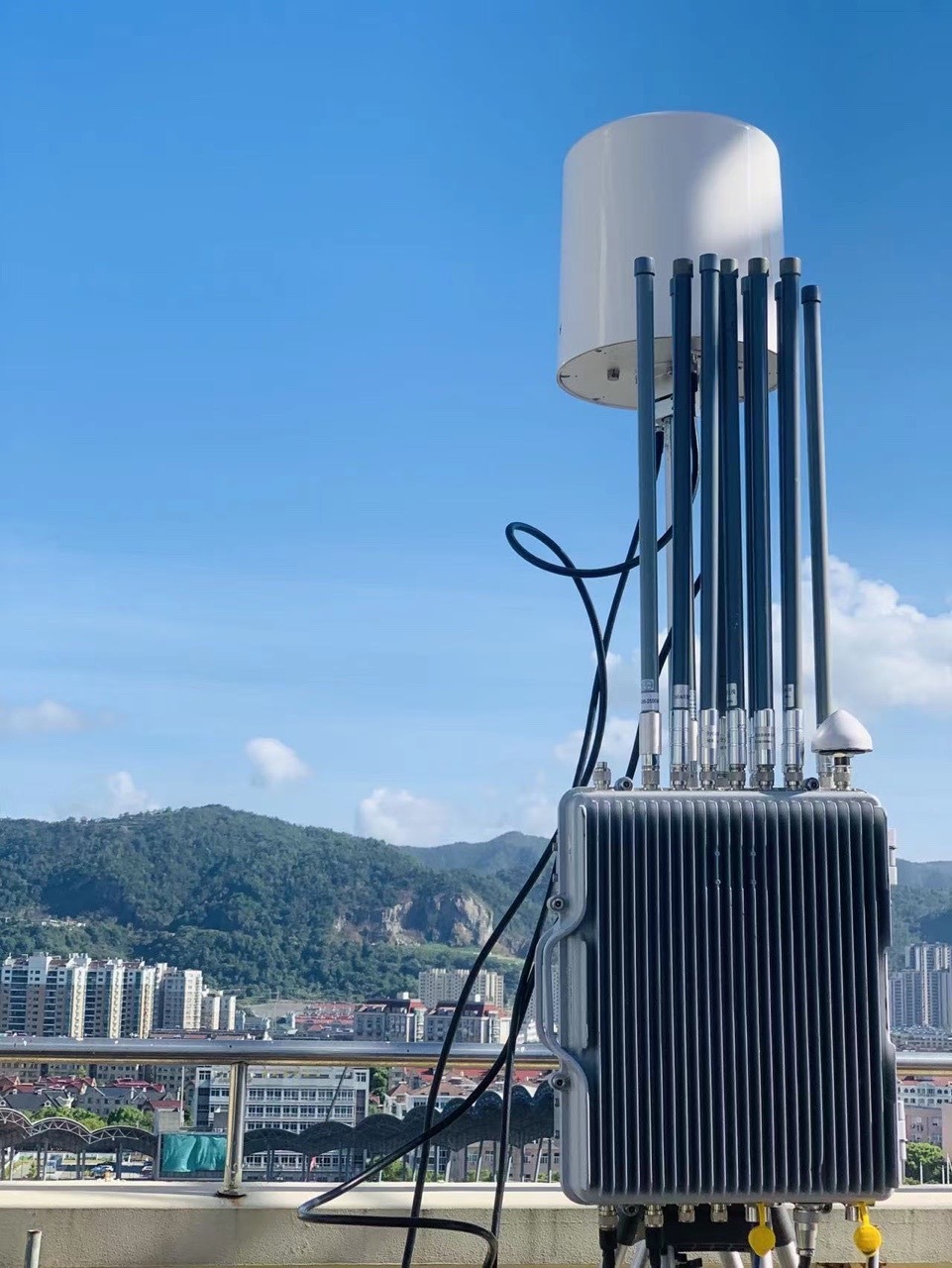

Stationary drone detection and jamming all in one device

Stationary drone detection and jamming all in one device
