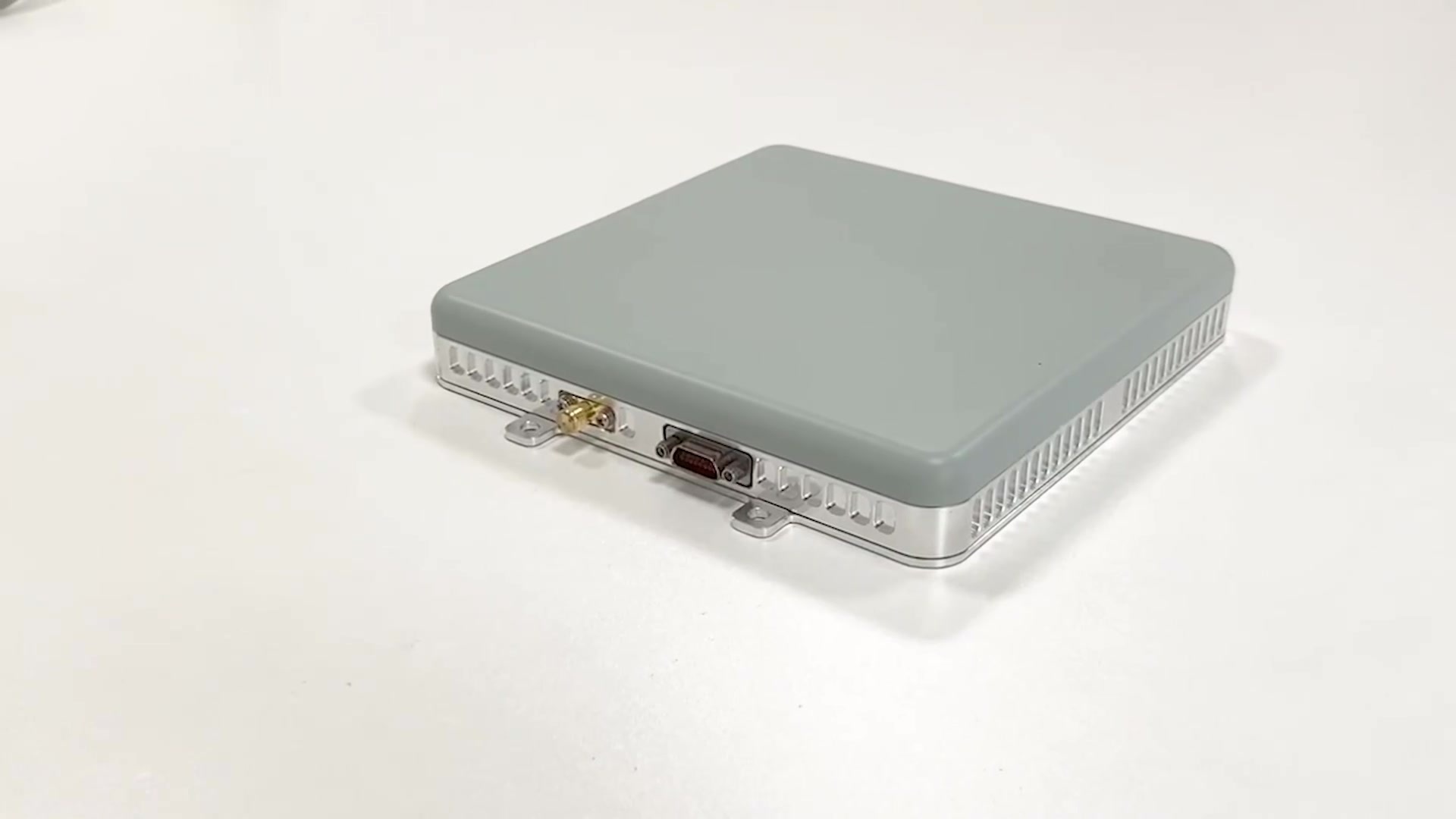

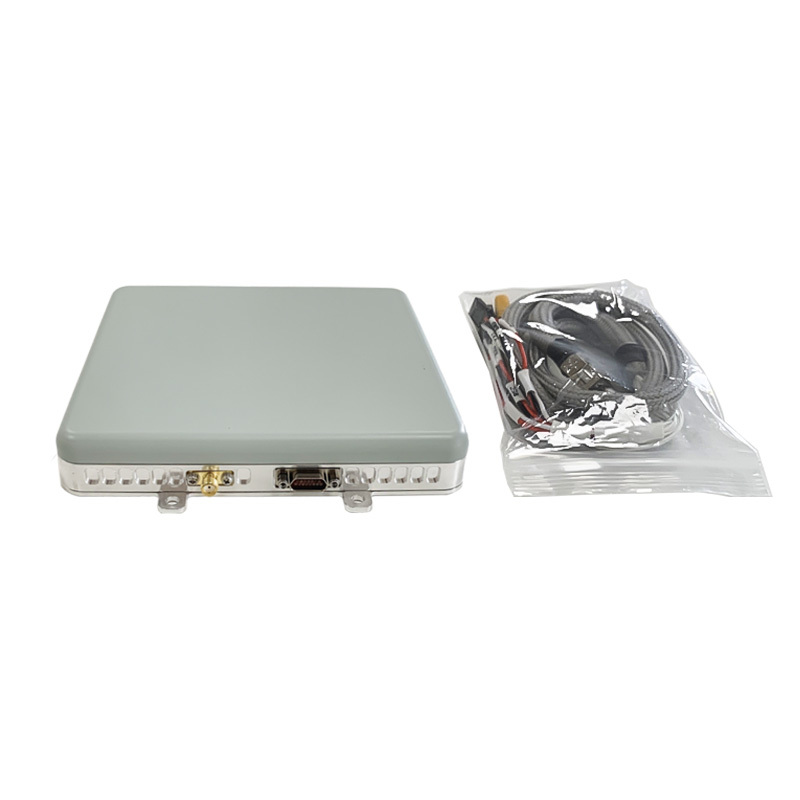

8 Channels Dual -Band Anti-Jamming Module

8 Channels Dual -Band Anti-Jamming Module

Chip Based Multi Antennas Anti-Interference Satellite Positioning Device

Email:

Category:

Key Words:

Anti-interference

anti-jamming

positioning

navigation

timing

PNT

Product Detail
parameter

This product is model JAJ2-8. It is the third generation of anti-jamming products, which serves in fields such as reliable navigation for drones, unmanned vehicles, etc., protecting user terminals from various unintentional interferences and malicious attacks, significantly improving PNT information security.

Product Features:

Possesses anti-spoofing capabilities.

Supports 8-element dual-band anti-interference with the main frequency point B1L1 and a fixed secondary frequency point, defaulting to L2

Integrated UBLOX-F9P navigation and positioning module, outputting positioning information according to the NMEA0183 protocol.

Product Specifications:

Operating Frequency	Frequency Point	B1&L1&E1 + L2
Operating Frequency	Bandwidth	Main：20MHz Secondary：20MHz
Anti-Interference	Single Interference	90dBc
	Multiple Interference	80dBc
	Spatial Domain	Azimuth：0°~360° Elevation：-90°~90°

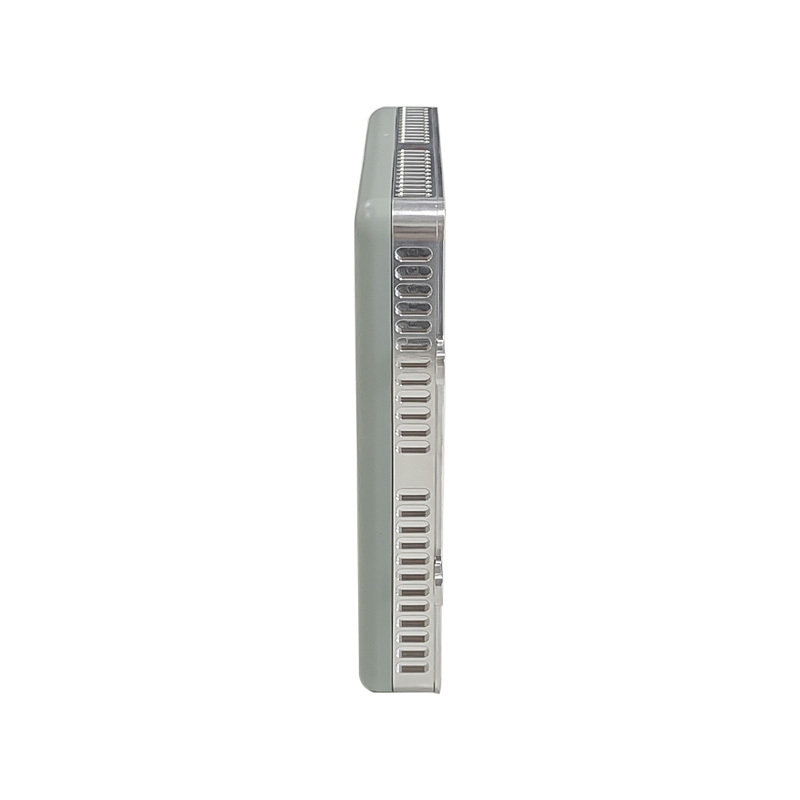

Physical Characteristics	Dimensions	150mm X 150mm X 24mm
	Weight	≤600g
	Power Input	12V
	Power Consumption	19W（at room temperature）

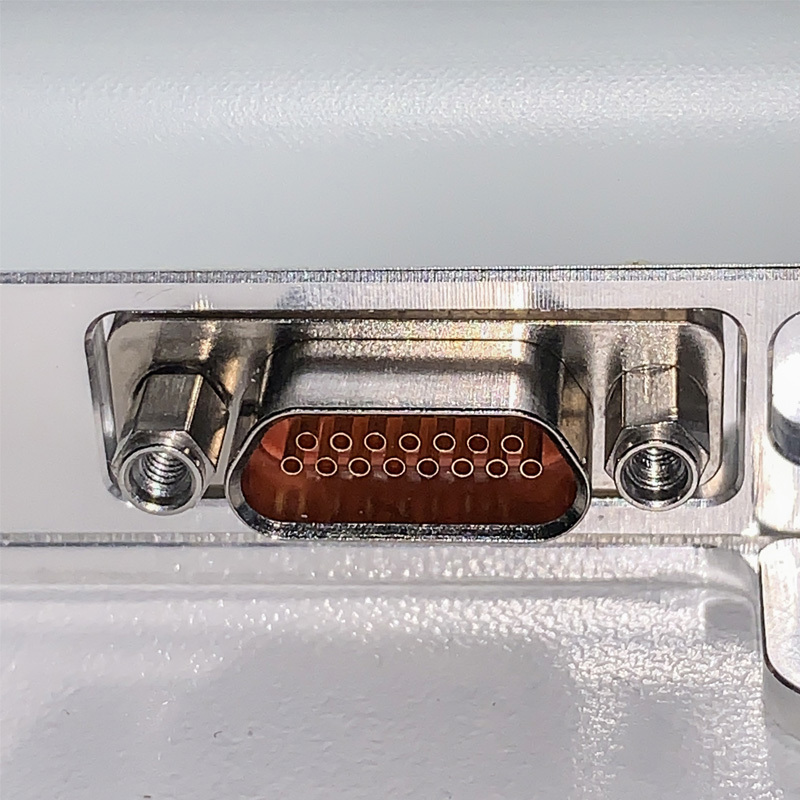

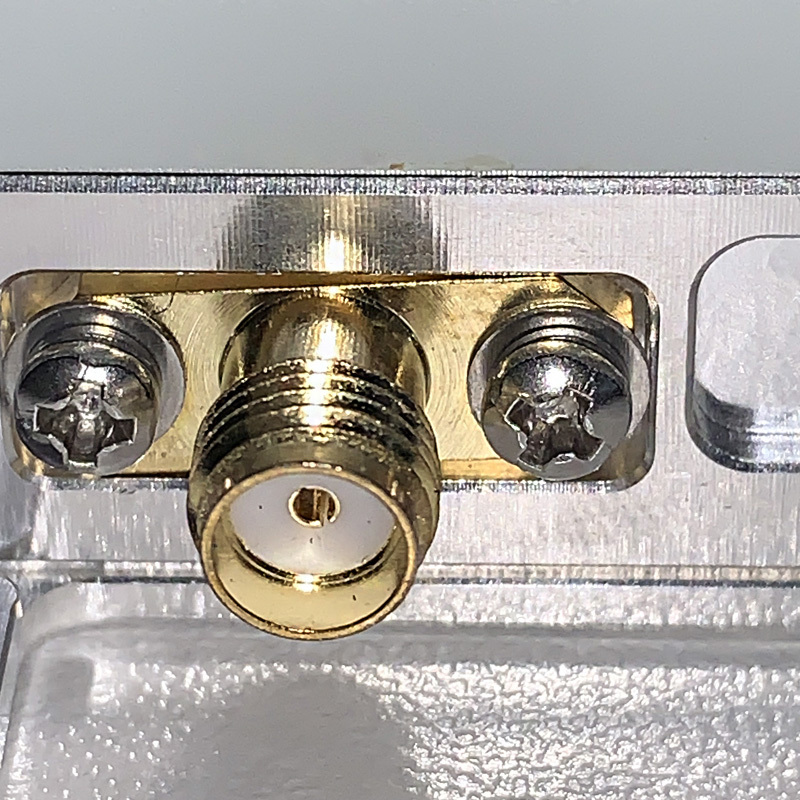

	Interfaces	J30J-15ZKP 1pc, SMA-JYD 1pc
Environmental Characteristics	Temperature	-45℃~70℃

- Anti interference Module
  - Elements 8
  - Bands 2

Applications

UAS system

At present, the global unmanned aerial vehicles (UAVs) are growing rapidly in the security,industrial, commercial and consumer fields, and the demand for positioning and navigation of UAVs is just needed, and the application of anti-jamming in some sensitive industries is upgraded.

Electric Power System

The centimeter-level attitude monitoring system for the terminal of electric wire tower based on Beidou has been developed.

Communication System

The anti-jamming component will provide the base station with an advanced solution for anti-jamming and anti-deception of satellite signals.

Communication System

The anti-jamming component will provide the base station with an advanced solution for anti-jamming and anti-deception of satellite signals.

Factory Environment

Cinofiber will continue to be a leader in the optical communication industry, providing customers around the world with more stable, reliable, and high-quality products and services.
