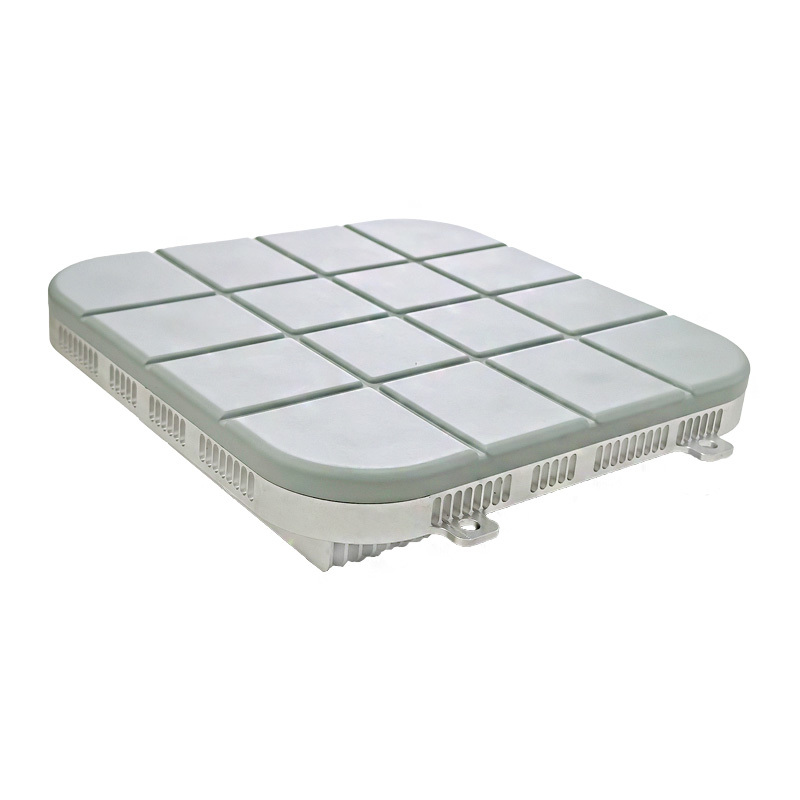

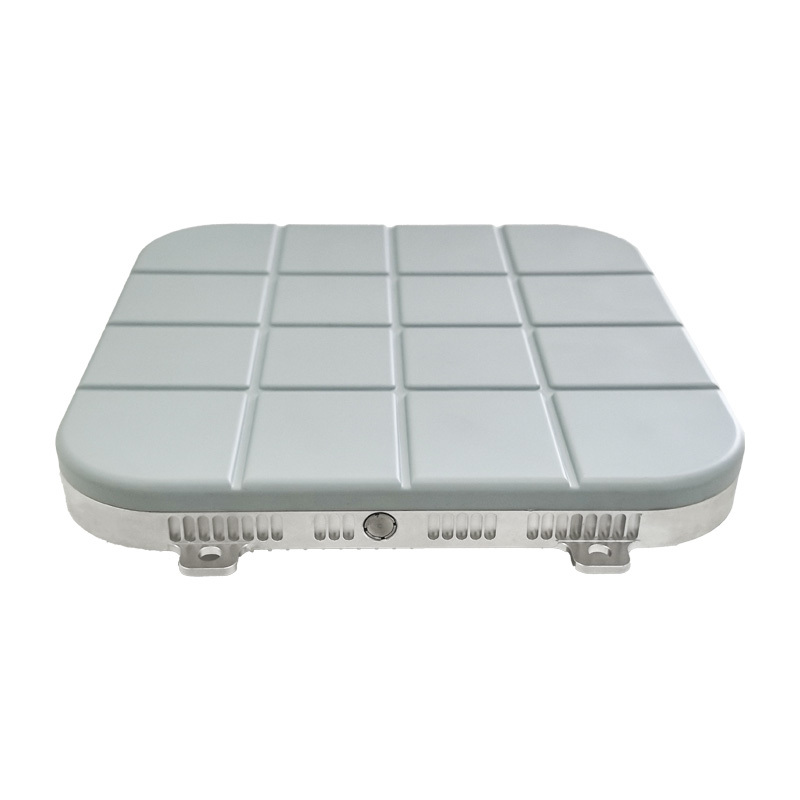

16 Channels Dual-band Anti-Jamming Module

16 Channels Dual-band Anti-Jamming Module

Email:

Category:

Key Words:

Sixteen channels double frequency

Product Detail
parameter

Product Overview

This product is model JAJ2-16. It is the third generation of anti-jamming products, which serves in fields such as reliable navigation for drones, unmanned vehicles, etc., protecting user terminals from various unintentional interferences and malicious attacks, significantly improving PNT information security.

Product Features

Possesses anti-spoofing capabilities.
Supports 16-element dual-band anti-interference with the main frequency point B1&L1&E1 and a fixed secondary frequency point, defaulting to L2.
Integrated UBLOX-F9P navigation and positioning module, outputting positioning information according to the NMEA0183 protocol.

Product Specifications

Operating Frequency	Frequency Point	B1&L1&E1 + L2
Operating Frequency	Bandwidth	Main：20MHz Secondary：20MHz
Anti-Interference	Single Interference	90dBc
	Multiple Interference	80dBc
	Spatial Domain	Azimuth：0°~360° Elevation：-90°~90°
Physical Characteristics	Dimensions	230mm X 230mm X 24mm
	Weight	≤2000g
	Power Consumption	22W（at room temperature）

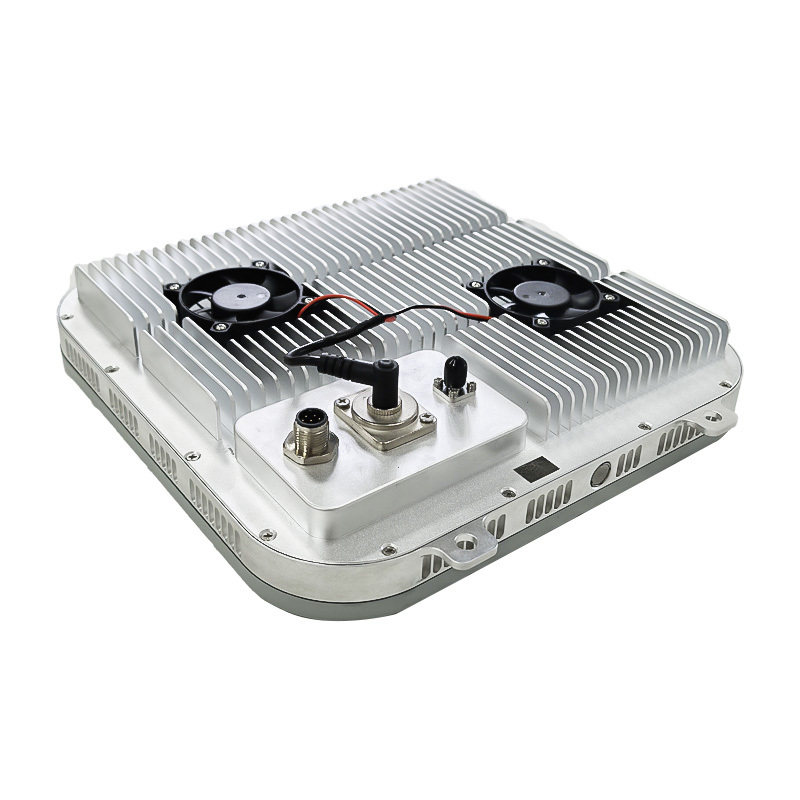

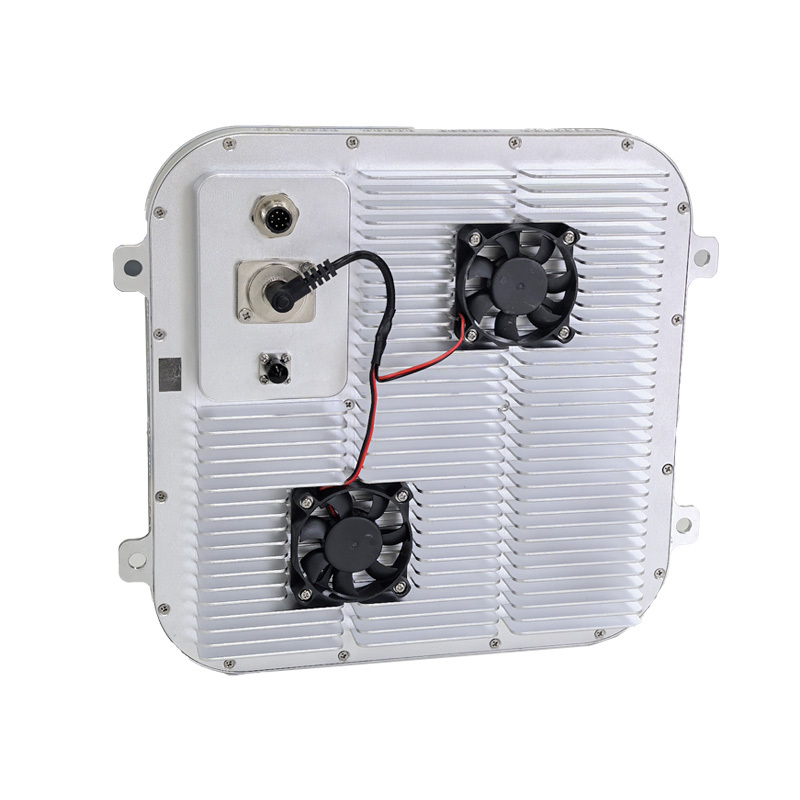

	Interfaces	J30J-15ZKP 1pc, SMA-JYD 4pc
Environmental Characteristics	Temperature	-45℃~70℃

- Anti interference Module
  - Elements 16
  - Bands 2

Applications

UAS system

At present, the global unmanned aerial vehicles (UAVs) are growing rapidly in the security,industrial, commercial and consumer fields, and the demand for positioning and navigation of UAVs is just needed, and the application of anti-jamming in some sensitive industries is upgraded.

Electric Power System

The centimeter-level attitude monitoring system for the terminal of electric wire tower based on Beidou has been developed.

Communication System

The anti-jamming component will provide the base station with an advanced solution for anti-jamming and anti-deception of satellite signals.

Communication System

The anti-jamming component will provide the base station with an advanced solution for anti-jamming and anti-deception of satellite signals.

Factory Environment

Cinofiber will continue to be a leader in the optical communication industry, providing customers around the world with more stable, reliable, and high-quality products and services.

Questions And Answers

Where Is Counter-Drone Technology Heading?

The counter-drone industry is rapidly evolving toward smarter, more precise, and more integrated solutions. Artificial intelligence is transforming threat detection capabilities, enabling systems to not only identify drone models with greater accuracy but also analyze flight patterns to predict potential threats.

What Are the Legal Requirements for Counter-Drone Equipment?

The acquisition and operation of counter-drone technologies are subject to strict regulatory controls that vary by jurisdiction. In most countries, radio frequency jamming devices require special licenses from telecommunications authorities, with users needing to demonstrate legitimate need and technical competence.

What Are the Challenges of Urban Counter-Drone Deployment?

Urban counter-drone operations present unique challenges that require careful planning and specialized solutions. The dense population and infrastructure demand non-destructive neutralization methods that won't endanger bystanders or property.

How Do Counter-Drone Systems Actually Work?

Counter-drone systems operate through a combination of detection, identification, and neutralization technologies. The most common approaches involve radio frequency jamming, radar detection, electro-optical tracking, directed energy weapons, and physical interception methods.
