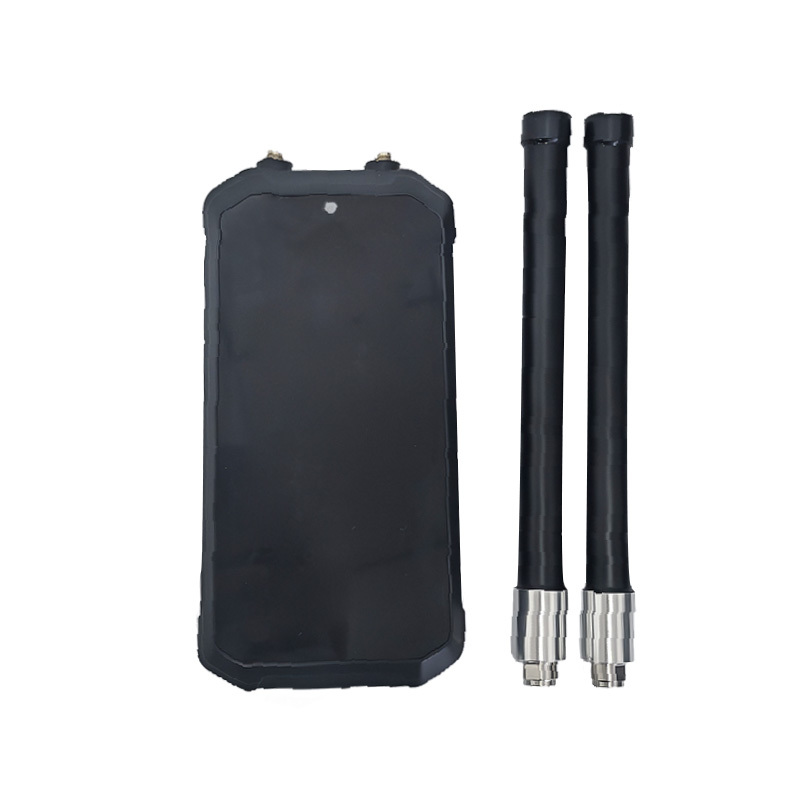

Handheld drone detection equipment
Based on Spectrum analysis technology, it adopts a deeper data chain decoding solution to analyse and extract real-time flight attribute information from data in specific formats, and accurately identifies the drone’s graphic&video stream, SN number, geo-location, trajectory, altitude, speed and remote control position, etc., to detect, identify and locate the unauthorized drones more quickly and accurately. The device has an integrated design, small in size, light in weight, easy to carry, which is suitable for all kinds of low-altitude protection.
Category:
Key Words:
Portable drone detection equipment
- Product Detail
- parameter
-
Passive Detection
Passively receives only, does not emit any electromagnetic signals, no impact on the surrounding environment
Precise Identification
Precisely identify the SN, model, geo-location, speed, altitude, trajectory, and remote controller information of the drones in real time
Trajectory Tracking
Multi-target trajectory tracking, pilot (remote control) tracking
Position Navigation
Detect the pilot’s (remote controller) position in real-time, one-click to track the pilot and the drone
Black and White List
One-click to mark the black and white list, there will be no alarm for white-listed drones
Network Management
Support network access to the control platform, to achieve multi-device collaboration, to achieve a wide range of prevention and control scenarios
Wireless Intercom
Multi-device wireless network, instant communication, collaborative operations, to support the completion of command and planning work
Graphic Steam
DIY graphic transmission traversing machine detection and identification, record the real-time graphic transmission screen of the drones;
Compact and Portable
Light in weight and small in size; Portable, shockproof and drop-proof
Working Principle
Passive detection, does not emit any electromagnetic signals Detection Bands
900MHz, 2.4GHz, 5.8GHz, WiFi Sensitivity
-95dBm Detection Distance
0~3km+ (Different exist due to different environments and drone type) Response Time
≤5s Detection Quantity
≥12 Drones (Simultaneous) Number of Drone Trajectories
≥11 Drones (Simultaneous) Position Accuracy
≤3m (Available for the drones can be decoded) Drone Library (Geo-Locaation)
DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands Dynamic Detection Movement Speed
≥60km/h (Available for the drones can be decoded) Screen Size
6.0 Inch Endurance
3～4h External Interface
Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1 Charging Time
≤3h（0%-100%） Power Consumption
≤15W Size
177mm * 89mm * 29.5mm（±2mm） Weight
≤580g(±0.05kg，without antenna)
≤46g per antenna
Operation Temperature
-20℃ to +50℃ IP Level
IP54 -
-
Anti interference Module
- Elements
- Bands
-
Applications
Defense and Security
Protecting critical infrastructure, military installations, and public events from potential drone threats.
Aviation
Safeguarding airports and airspace from unauthorized drone incursions that could jeopardize flight safety.
Energy
Securing power plants, oil refineries, and renewable energy facilities from espionage or sabotage by rogue drones.
Public Safety
Enhancing the safety of large public gatherings, such as sports events and concerts, by preventing disruptive or dangerous drone activities.
Commercial and Industrial
Ensuring the security of corporate campuses, industrial sites, and private properties from drone-related risks.
