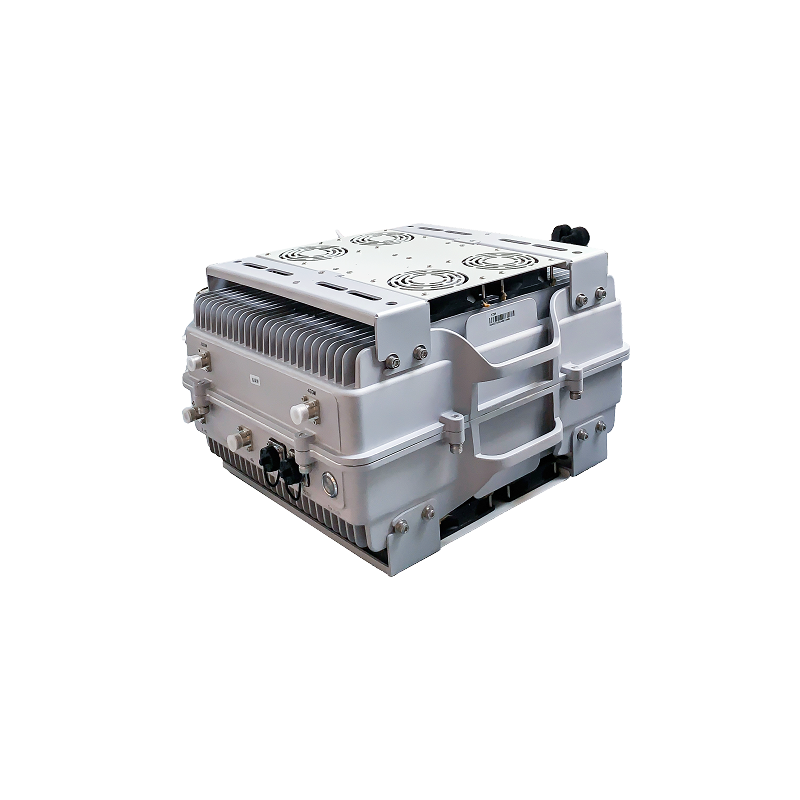

Stationary drone jamming device JJ3
Stationary drone jamming device JJ3

Stationary drone jamming device JJ3

JJ3 is a high-power omnidirectional fixed uav countermeasures equipment, which is connected to external mains power and can realize single frequency control. The equipment adopts narrow band interference technology and radio frequency suppression technology to cut off the connection between the uav and the remote control, thus forcing the uav to return forcibly. In addition, after the UAV is controlled, it will cut off the image transmission channel, which will not transmit video, aerial photos and can not receive any instructions from the remote control on the ground, so as to achieve the protection of key areas and prevent privacy leakage.

Email:

sales01@swarmdefend.com

Online Inquiry
Related Products

Category:

Counter

Key Words:

Stationary detection equipment D5F

D5F

Stationary

  • Product Detail
  • parameter

  • Jamming frequency bands:
    433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz
    Supporting from  30MHz to 6GHz





     Bands supported433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz

    Countermeasure ability

    		Return, landing

    Countermeasure distance

    		 3000m

    Counterpoint Angle

    360°

    Duration of flight

    		24 hours

    Power connection mode

    110 /220V municipal electricity

    Size

    Growth, height and thickness: 500 * 480 * 280mm

    Weight30 kg


     Note: OEM customization: module frequency band, power, screen printing can be customized according to customer requirements








    • Anti interference Module

      • Elements
      • Bands

Applications

Defense and Security

Defense and Security

Protecting critical infrastructure, military installations, and public events from potential drone threats.

Aviation

Aviation

Safeguarding airports and airspace from unauthorized drone incursions that could jeopardize flight safety.

Energy

Energy

Securing power plants, oil refineries, and renewable energy facilities from espionage or sabotage by rogue drones.

Public Safety

Public Safety

Enhancing the safety of large public gatherings, such as sports events and concerts, by preventing disruptive or dangerous drone activities.

Commercial and Industrial

Commercial and Industrial

Ensuring the security of corporate campuses, industrial sites, and private properties from drone-related risks.

Factory Environment

Cinofiber will continue to be a leader in the optical communication industry, providing customers around the world with more stable, reliable, and high-quality products and services.

Factory
Factory
Factory
Factory

Questions And Answers

Where Is Counter-Drone Technology Heading?

The counter-drone industry is rapidly evolving toward smarter, more precise, and more integrated solutions. Artificial intelligence is transforming threat detection capabilities, enabling systems to not only identify drone models with greater accuracy but also analyze flight patterns to predict potential threats.

What Are the Legal Requirements for Counter-Drone Equipment?

The acquisition and operation of counter-drone technologies are subject to strict regulatory controls that vary by jurisdiction. In most countries, radio frequency jamming devices require special licenses from telecommunications authorities, with users needing to demonstrate legitimate need and technical competence.

What Are the Challenges of Urban Counter-Drone Deployment?

Urban counter-drone operations present unique challenges that require careful planning and specialized solutions. The dense population and infrastructure demand non-destructive neutralization methods that won't endanger bystanders or property.

How Do Counter-Drone Systems Actually Work?

Counter-drone systems operate through a combination of detection, identification, and neutralization technologies. The most common approaches involve radio frequency jamming, radar detection, electro-optical tracking, directed energy weapons, and physical interception methods.

Certificate Of Honor

Related Products

Stationary detection equipment JDF5

Stationary detection equipment JDF5

Detection bands:433MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHzSupporting range from  30MHz to 6GHz Passive Detection：It only passively receives and does not transmit any electromagnetic signal, and can detect the UAV model and its electronic fingerprint.Accurate Identification：It can accurately identify different UAVs of the same brand and model.Unmanned：Turn on unattended mode, which can automatically detect alarms 24 hours a day.White and Black List：It can mark the black-and-white list with one key, and the white list UAV does not alarm.Full Drone Library：More than 350 types of model library, supporting DJI full series, mainstream brands and DIY UAVs, covering more than 98% of UAV models on the market.Integrability：Professional UAV detection software, which can be integrated into radar, photoelectric and jamming control systems.  Bands supported30MHz—6GHz full bands detectionKey detection frequency bands：433MHz\900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHzDetection DistanceRadius 5km, coverage scope 10kmAccuracy ≤3°Hovering         ≤10°MovingSensitivityBetter than -115dBm（25kHz）Directivity360°OmnidirectionalAdaptable Communication Modulation MethodFM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSSSimultaneous Detection≥50 dronesDetection ModePanoramic scanning, channel scanningDynamic Range70dBPower SupplyAC220V±20V (110V customized)Operating Time7*24HSupporting:  new DJI models  OC2, OC3, OC4 protocol DJI drone:    Mavic 2, Mavic 2 enterprise,   Phantom 4 Enterprise V2, Mavic 3, Mavic 3 Classic, Mavic 3 Enterprise, DJI Mini 2, DJI Mini3. DJI Mini4, Avatar, Avatar 2, Mini 4 Pro, M300, M350 RTK,  some Parrot drones and so on.Functions:  showing real ID of drones, longitude and latitude, height of drones, route tracking, pilot location, and so on.

Portable drone detection equipment

Portable drone detection equipment

Active radar detector

Active radar detector

JR1 radar is a three-coordinate radar with pulse Doppler system with azimuth machine sweep and pitch dimension scanning, which is mainly used for detection and positioning of low-altitude aircraft, ground moving vehicles and personnel. The radar can accurately detect the spatial position of the target, and can be connected to the optoelectronic system,which can be cascaded with countermeasures such as jamming, laser weapons,and navigation decoy.

Fixed spoofing

Fixed spoofing
