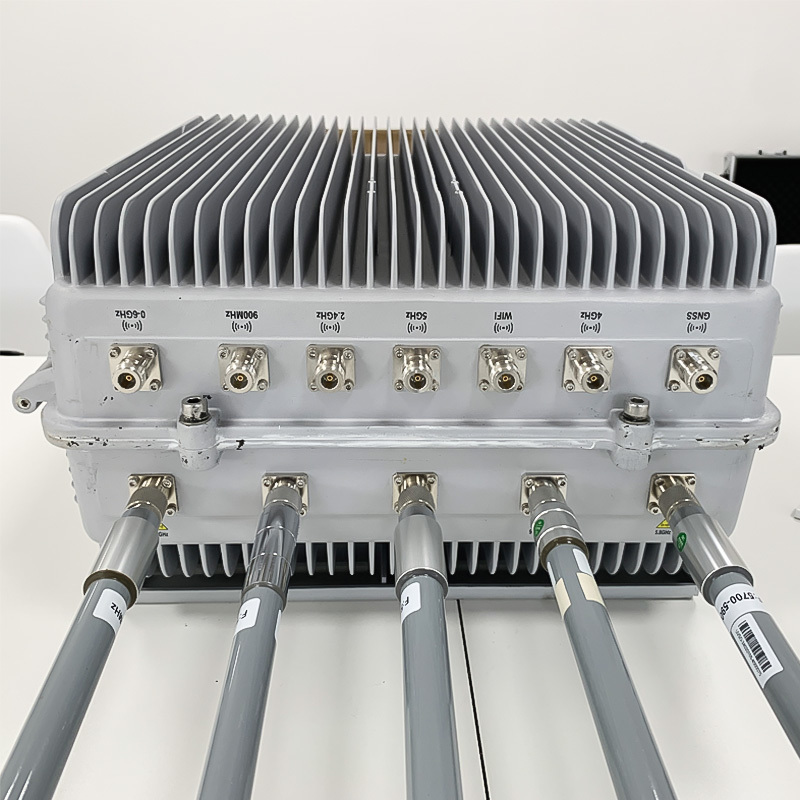

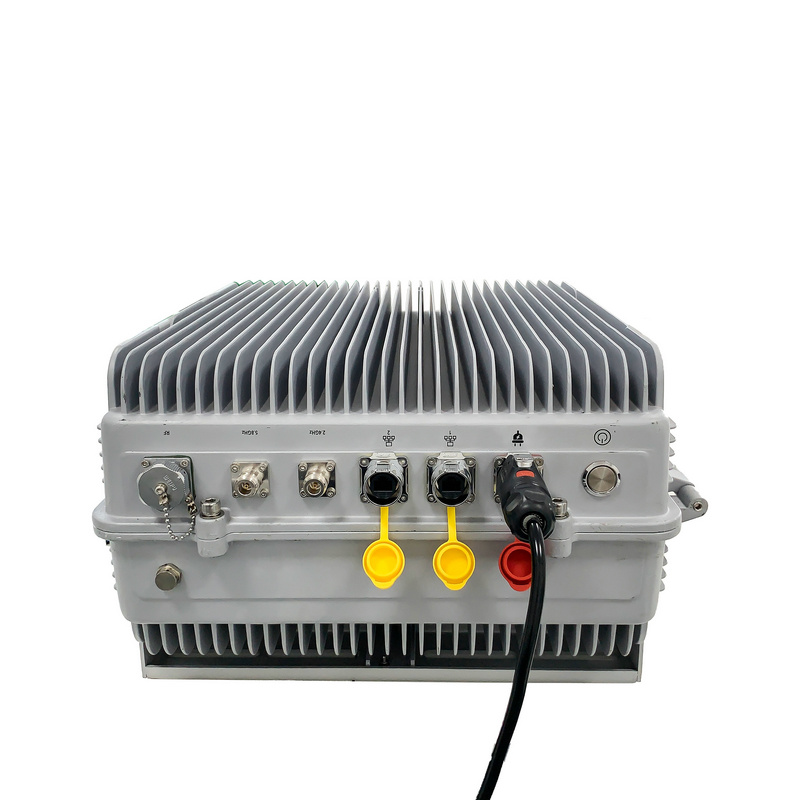

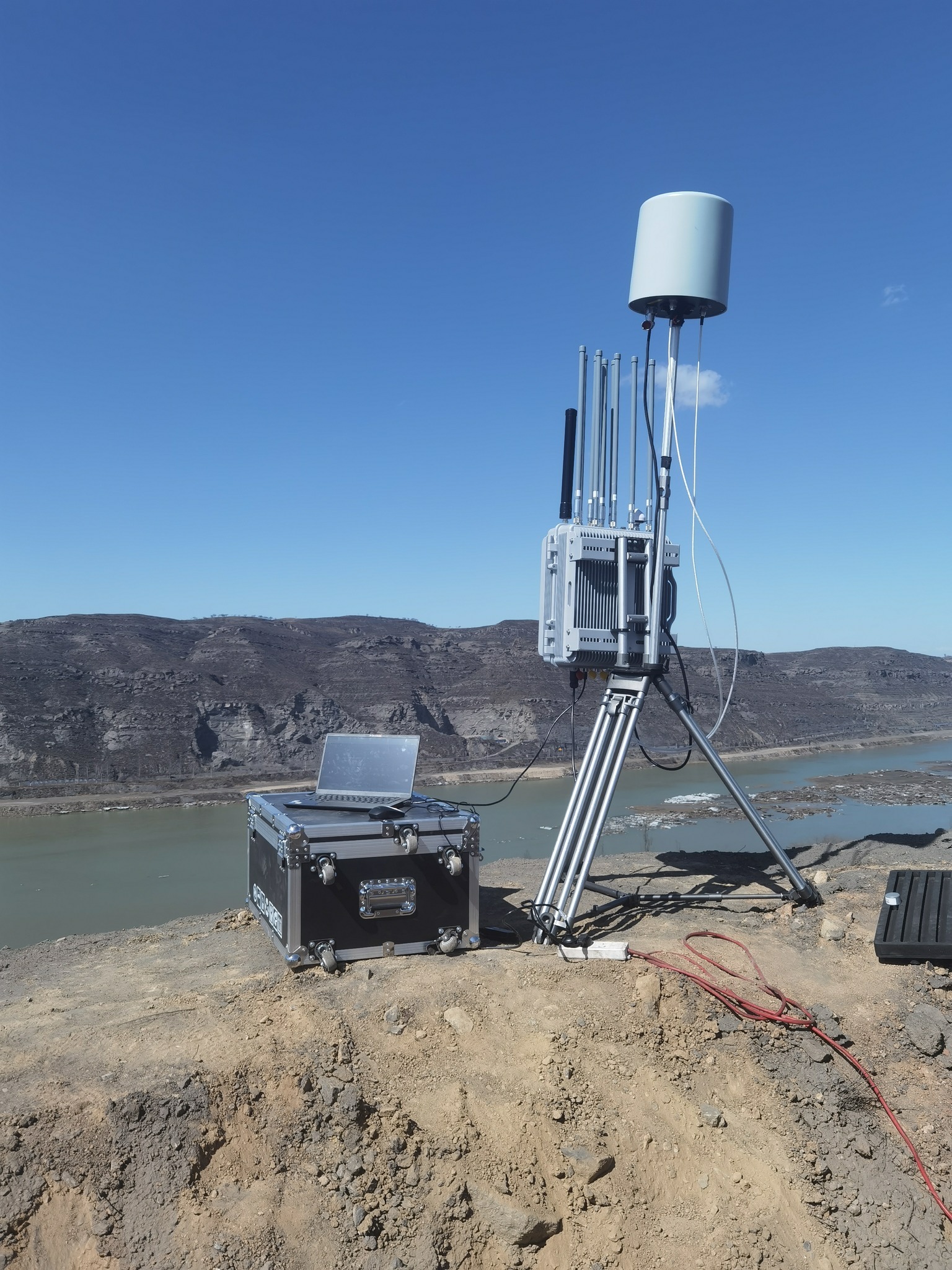

Stationary drone detection and jamming all in one device
Stationary drone detection and jamming all in one device

Stationary drone detection and jamming all in one device

Key Words:

Stationary detection equipment D5F

D5F

Stationary

drone detection radar

  • Product Detail
  • parameter
  • Passive Detection: Passively receives signals, does not emit any electromagnetic signals, able to detect drone model and its electronic fingerprint.
    Direction Finding Accuracy: Accurately determine the UAV’s intrusion direction and indicate the target.
    Identification Accuracy: Accurately identify different drones of the same brand, same model, and same frequency band.
    Precise Defense: Designate to jam any one of the two drones;
    Full-autonomy Mode: 24-hour automatic detection and alarm, no need of personnel on duty
    Combined Defense: combination of narrowband, frequency hopping, low-power precise defense and wideband high-power jamming;
    Black & White List: Able to mark the drone into black and white list with a single click, and the white list drone does not alarm.
    Model Library: Support all DJI models, mainstream brands, DIY drones. Cover more than 98% of drone models on the market



    Passive
    detection



    Support Frequencies

    30MHz—6GHz full bands detection

    Key detection frequency bands:433MHz\900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHz (customizable)

    Detection Range
    3km, 5km, 8km
    Detection Sensitivity
    ≥ -95dBm(25kHz)
    Direction Finding
    Accuracy
    Moving ≤ 10°, Hovering ≤ 3°
    Direction Directivity
    360°Omnidirectional
    Adaptable
    communication
    modulation method
    FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS
    Simultaneous
    Detection
    ≥30 drones

    Wideband Jamming

    Supported frequencies

    2.4G, 5.8G, 1.5G (Other frequency bands can be
    customized)

    Jamming range

    2kn,3kn

    Precise defense

    Supported frequencies

    2.4G,5.8G

    Defense range

    2km,3km

    Equipment specification

    Demensions

    410mm×330mm×190mm (length×Width×Thickness)

    Weight

    25.8kg



    Model

    Detection Distance

    Wideband Jamming Distance

    Precise Strike

    DFJ32

    3KM

    2KM

    2KM

    DFJ53

    5KM

    3KM

    3KM

    DFJ83

    8KM

    3KM

    3KM



    Drone detection radar is an advanced surveillance system designed to identify, track, and monitor unmanned aerial vehicles (UAVs) in various environments. It operates by emitting radio waves and analyzing the reflected signals from drones to determine their position, speed, altitude, and flight trajectory. This technology is widely used in airports, military bases, critical infrastructure, public events, and border security to enhance airspace safety and prevent unauthorized drone activities.



    Modern drone detection radar systems are capable of detecting both small and large drones at long distances, even in complex environments or adverse weather conditions. Many systems are integrated with additional technologies such as electro-optical sensors, infrared cameras, and RF signal detection to improve accuracy and reduce false alarms. These multi-sensor solutions provide comprehensive situational awareness and enable operators to respond quickly to potential threats.



    Drone radar systems often feature real-time monitoring interfaces, automated alert functions, and data recording capabilities, allowing security personnel to analyze flight patterns and make informed decisions. Some advanced models support network integration and remote control, making them suitable for centralized security management systems. With the rapid growth of drone usage worldwide, drone detection radar has become an essential tool for maintaining airspace security and protecting sensitive locations.

    • Anti interference Module

      • Elements
      • Bands

Applications

Defense and Security

Defense and Security

Protecting critical infrastructure, military installations, and public events from potential drone threats.

Aviation

Aviation

Safeguarding airports and airspace from unauthorized drone incursions that could jeopardize flight safety.

Energy

Energy

Securing power plants, oil refineries, and renewable energy facilities from espionage or sabotage by rogue drones.

Public Safety

Public Safety

Enhancing the safety of large public gatherings, such as sports events and concerts, by preventing disruptive or dangerous drone activities.

Commercial and Industrial

Commercial and Industrial

Ensuring the security of corporate campuses, industrial sites, and private properties from drone-related risks.
