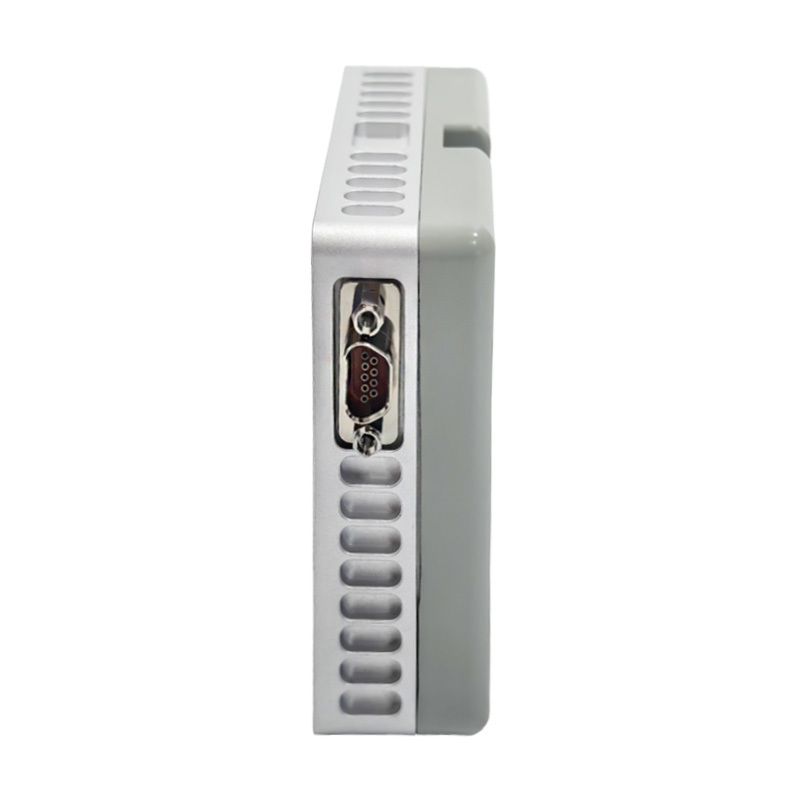

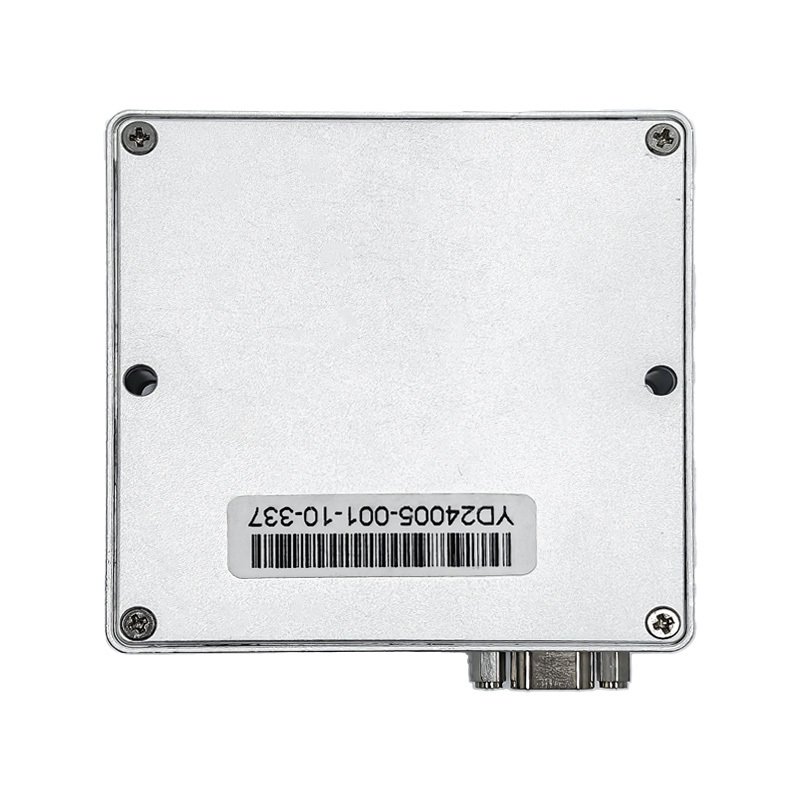

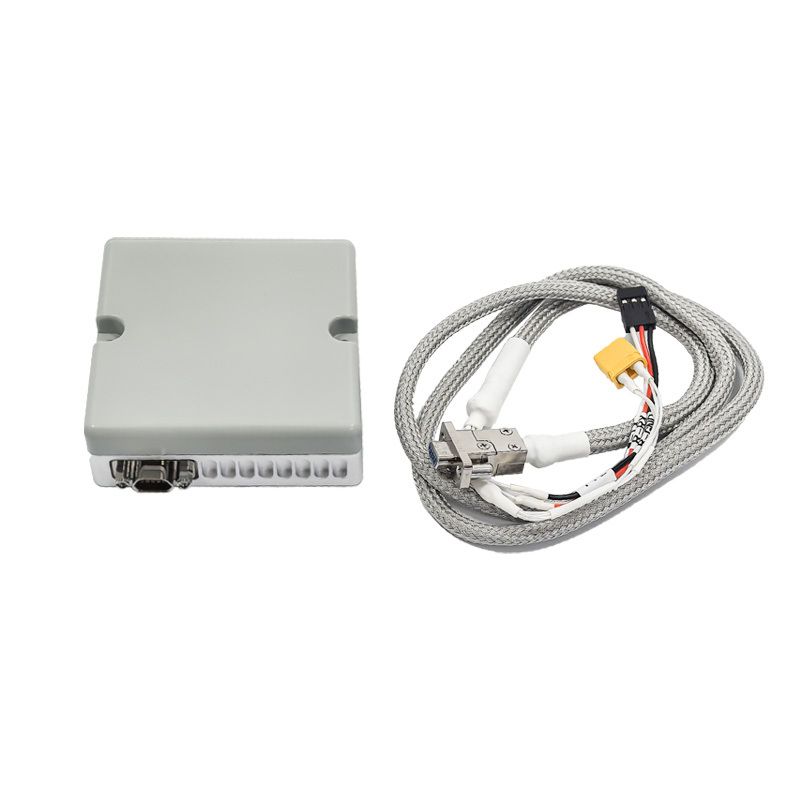

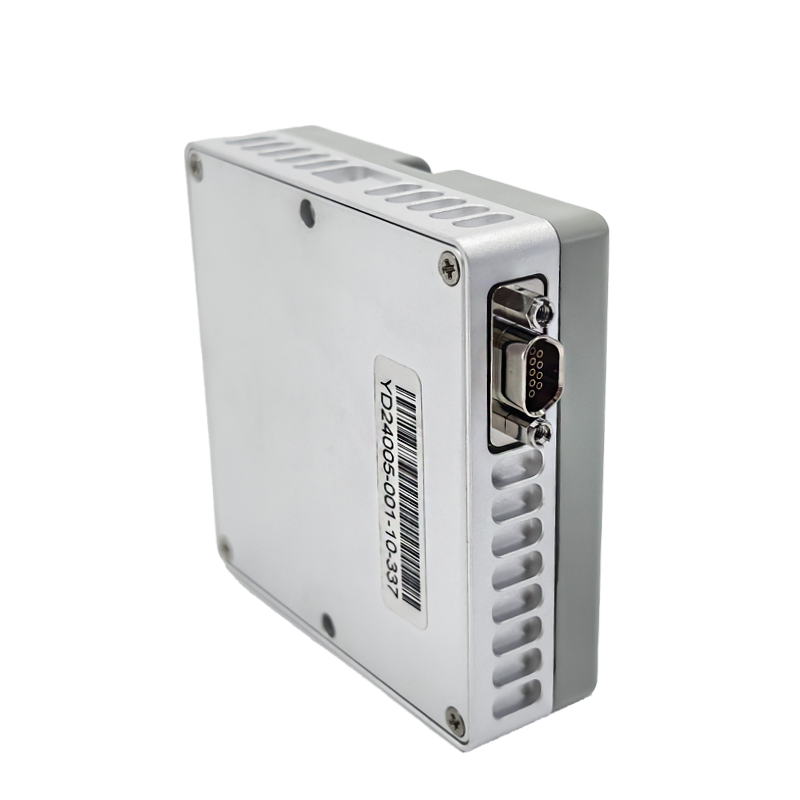

MINI 4 Channels Single-Band Anti-jamming module
Chip Based Multi Antennas Anti-Interference Satellite Positioning Device
Category:
Key Words:
Anti-interference
anti-jamming
positioning
navigation
timing
PNT
ANTI SPOOF
- Product Detail
- parameter
-
Product Overview
This product is model JAJ1-4 Mini. It is the third generation of anti-jamming products, which serves in fields such as reliable navigation for drones, unmanned vehicles, etc., protecting user terminals from various unintentional interferences and malicious attacks, significantly improving PNT information security.
Product Features
- Anti-jamming & Anti-spoofing capability.
- Supports 4-element single-band anti-interference with the operating frequency point B1&L1&E1.
- Integrated UBLOX-M10050 navigation and positioning module, outputting positioning information according to the NMEA0183 protocol.
Product Specifications
Operating Frequency Frequency Point B1&L1&E1 Bandwidth 20MHz Anti-Interference Single Interference 85dBc Multiple Interference 70dBc Spatial Domain Azimuth：0°~360°
Elevation：-90°~90°

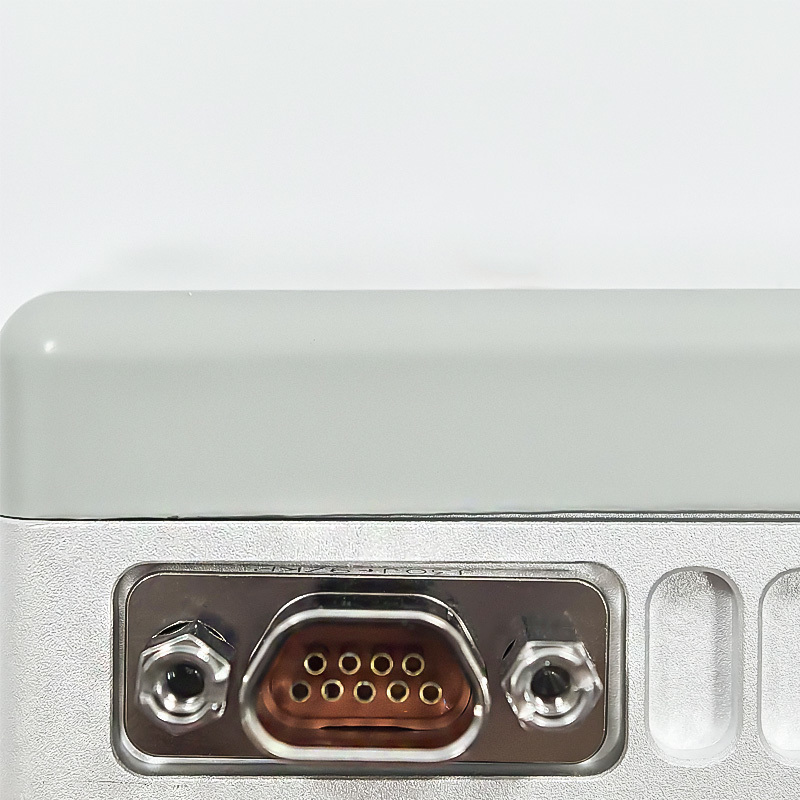

Physical Characteristics Dimensions 66mm X 66mm X 22mm Weight ≤135g Power Input 5V Power Consumption 7W（at room temperature） Interfaces J30J-9ZKP 1pc Environmental Characteristics Temperature -45℃~70℃ - Anti-jamming & Anti-spoofing capability.
-
-
Anti interference Module
- Elements 4
- Bands 1
-
Applications
UAS system
At present, the global unmanned aerial vehicles (UAVs) are growing rapidly in the security,industrial, commercial and consumer fields, and the demand for positioning and navigation of UAVs is just needed, and the application of anti-jamming in some sensitive industries is upgraded.
Electric Power System
The centimeter-level attitude monitoring system for the terminal of electric wire tower based on Beidou has been developed.
Communication System
The anti-jamming component will provide the base station with an advanced solution for anti-jamming and anti-deception of satellite signals.
Communication System
The anti-jamming component will provide the base station with an advanced solution for anti-jamming and anti-deception of satellite signals.
Factory Environment
Cinofiber will continue to be a leader in the optical communication industry, providing customers around the world with more stable, reliable, and high-quality products and services.
