Stationary detection equipment JDF5
Detection bands:433MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHzSupporting range from 30MHz to 6GHz Passive Detection：It only passively receives and does not transmit any electromagnetic signal, and can detect the UAV model and its electronic fingerprint.Accurate Identification：It can accurately identify different UAVs of the same brand and model.Unmanned：Turn on unattended mode, which can automatically detect alarms 24 hours a day.White and Black List：It can mark the black-and-white list with one key, and the white list UAV does not alarm.Full Drone Library：More than 350 types of model library, supporting DJI full series, mainstream brands and DIY UAVs, covering more than 98% of UAV models on the market.Integrability：Professional UAV detection software, which can be integrated into radar, photoelectric and jamming control systems. Bands supported30MHz—6GHz full bands detectionKey detection frequency bands：433MHz\900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHzDetection DistanceRadius 5km, coverage scope 10kmAccuracy ≤3°Hovering ≤10°MovingSensitivityBetter than -115dBm（25kHz）Directivity360°OmnidirectionalAdaptable Communication Modulation MethodFM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSSSimultaneous Detection≥50 dronesDetection ModePanoramic scanning, channel scanningDynamic Range70dBPower SupplyAC220V±20V (110V customized)Operating Time7*24HSupporting: new DJI models OC2, OC3, OC4 protocol DJI drone: Mavic 2, Mavic 2 enterprise, Phantom 4 Enterprise V2, Mavic 3, Mavic 3 Classic, Mavic 3 Enterprise, DJI Mini 2, DJI Mini3. DJI Mini4, Avatar, Avatar 2, Mini 4 Pro, M300, M350 RTK, some Parrot drones and so on.Functions: showing real ID of drones, longitude and latitude, height of drones, route tracking, pilot location, and so on.
Category:
Key Words:
Stationary detection equipment D5F
D5F
Stationary
radio detection equipment
- Product Detail
- parameter
-
Detection bands:
433MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Supporting range from 30MHz to 6GHzPassive Detection：It only passively receives and does not transmit any electromagnetic signal, and can detect the UAV model and its electronic fingerprint.
Accurate Identification：It can accurately identify different UAVs of the same brand and model.
Unmanned：Turn on unattended mode, which can automatically detect alarms 24 hours a day.
White and Black List：It can mark the black-and-white list with one key, and the white list UAV does not alarm.
Full Drone Library：More than 350 types of model library, supporting DJI full series, mainstream brands and DIY UAVs, covering more than 98% of UAV models on the market.
Integrability：Professional UAV detection software, which can be integrated into radar, photoelectric and jamming control systems.Bands supported 30MHz—6GHz full bands detectionKey detection frequency bands：433MHz\900MHz\1.4GHz\2.4GHz\5.2GHz\5.8GHz Detection Distance Radius 5km, coverage scope 10km Accuracy ≤3°Hovering ≤10°Moving Sensitivity Better than -115dBm（25kHz） Directivity 360°Omnidirectional Adaptable Communication Modulation Method FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS Simultaneous Detection ≥50 drones Detection Mode Panoramic scanning, channel scanning Dynamic Range 70dB Power Supply AC220V±20V (110V customized) Operating Time 7*24H Supporting: new DJI models OC2, OC3, OC4 protocol DJI drone: Mavic 2, Mavic 2 enterprise, Phantom 4 Enterprise V2, Mavic 3, Mavic 3 Classic, Mavic 3 Enterprise, DJI Mini 2, DJI Mini3. DJI Mini4, Avatar, Avatar 2, Mini 4 Pro, M300, M350 RTK, some Parrot drones and so on.

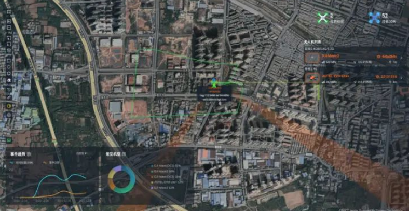

Functions: showing real ID of drones, longitude and latitude, height of drones, route tracking, pilot location, and so on.
Radio detection equipment is designed to monitor and identify drone communication signals through passive radio frequency detection. It can accurately identify drone models, track flight trajectories, and locate remote controllers in real time. The system supports multi target detection and network management, making it suitable for airspace security, critical infrastructure protection, and public safety monitoring.
-
-
Anti interference Module
- Elements
- Bands
-
Applications
Defense and Security
Protecting critical infrastructure, military installations, and public events from potential drone threats.
Aviation
Safeguarding airports and airspace from unauthorized drone incursions that could jeopardize flight safety.
Energy
Securing power plants, oil refineries, and renewable energy facilities from espionage or sabotage by rogue drones.
Public Safety
Enhancing the safety of large public gatherings, such as sports events and concerts, by preventing disruptive or dangerous drone activities.
Commercial and Industrial
Ensuring the security of corporate campuses, industrial sites, and private properties from drone-related risks.
